Haltech - Nexus IO16 Input/Output Expander - 16 Channel
Sale price
$532.00
Regular price $558.60
Skip to product information
Haltech - Nexus IO16 Input/Output Expander - 16 Channel
Sale price
$532.00
Regular price $558.60
SKU: HT-196000
No Import Brokerage Fees

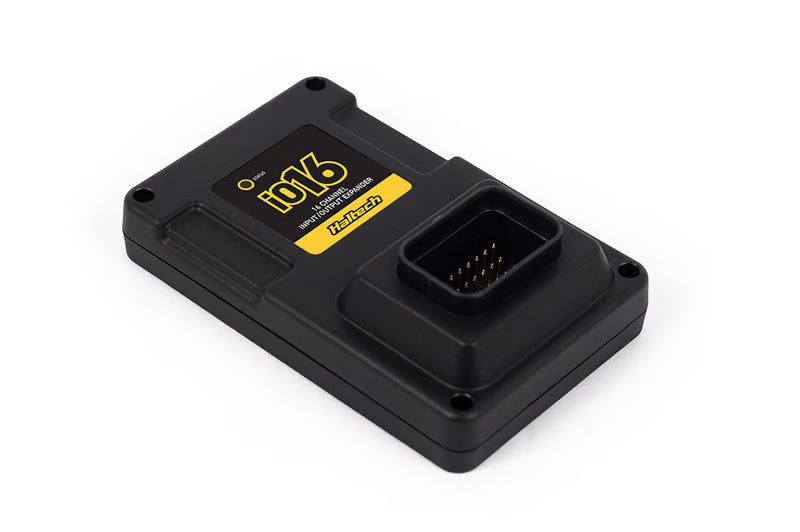

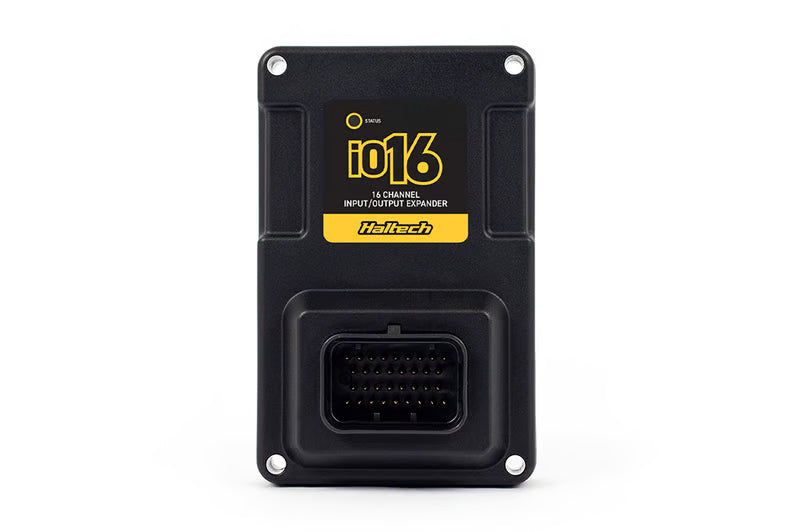

The Nexus IO16 is a Haltech CAN device that expands the functionality of a Haltech Nexus or Elite ECU by adding 16 user-configurable input and output channels, accessible through the Haltech CAN system.
INPUTS 6 x Analogue Voltage Inputs (AVI)- 0-5V readable range
- Selectable 1k pull-up resistor to 5V
- Reluctor/Digital
- 0-5V readable range
- Selectable 1k pull-up resistor to 5V
- 8A current (sink/source)
- Capable of 0-100% duty cycle
- 2.2khz switching speed
- NOT suitable for DBW throttle application
- 3 x 5V output (sensor power)
- 4 x Sensor ground
Suits: Nexus ECU's/VCU's/Dashes Elite ECU's
Includes: IO16 Expander, Mounting Hardware, and Quick Start Guide
Notes: Not Compatible with Platinum Series ECU's
Motorsport & Competition Notice: This performance component is engineered and intended strictly for off-road closed-course racing and organized motorsport competition use.
