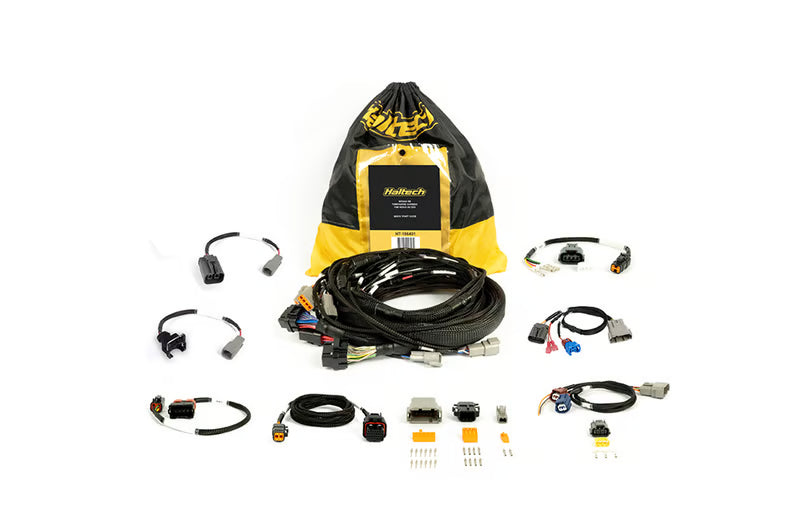

Haltech - Nexus R3 Nissan RB 25/26/30 Terminated Harness

Terminated Engine Harness for Nexus R3 VCU - suits the following Nissan RB engines:

• RB20DET
• RB25DET
• RB25DET Neo
• RB26DETT
• RB30E

• Main terminated harness,
• RB25 RB26 CAS adaptor
• RB30 CAS adaptor
• RB25 RB26 cable throttle sub-harness
• RB30 cable throttle sub-harness
• Yazaki alternator adaptor
• EV1 alternator adaptor
• Cabin adaptor harness
• Connectors and pins to terminate spare inputs and outputs

Note: Does not include Ignition harness, Injector harness, DBW throttle harness, these are all sold seperately.

ECU:

Haltech - Nexus R3 VCU

Ignition Harness:

Haltech - Nexus i6 R35 COP Ignition Harness

Haltech - R35 Coil Bracket Kit for Nissan RB Includes Bracket , Coils, Connectors and Harness

Injector Harness:

Haltech - i6 Timer (EV1) Primary Injector Harness

Haltech - i6 GT150 (USCAR EV6) Primary Injector Harness

Haltech - i6 Sumitomo (Denso) Primary Injector Harness

DBW Harness:

Haltech - Nexus DBW Subharness - Suits Bosch

This terminated harness does NOT support early COP ignition systems using an external ignitor (no sub-harness support), RB30 distributor ignition (no sub-harness support), switched type TPS (variable TPS required).

• RB25/26/30 Factory CAS
• RB25/26/30 variable TPS
• AAC and FICD
• Alternator (Yazaki and EV1 connectors)
• Coolant Temperature Sensor (2-pin)
• Coolant Temperature Gauge Sensor (1-pin)
• Oil Pressure Gauge Sensor
• VCT Solenoid

• EV1, EV6(USCAR), or Sumitomo (Denso) injector connectors
• R35 COP ignition coils
• Wideband lambda sensor - Bosch LSU 4.9
• Dual knock sensors (Bosch)
• Flex fuel sensor
• MAP sensor (ECU onboard 4 bar MAP)
• Oil and fuel pressure sensors (Delphi 3-pin)
• Haltech air temp sensor (HT-010206)
• Thermofan control
• Fuel pump control
• Bosch DBW throttle
• Universal APP connection
• Haltech boost solenoid
• Haltech CAN devices (eg dash, keypad, IO16)
• Spare IOs for additional functionality
