LINK ECU - A Loom

'A' loom to suit G4, G4+ and G4X ECUs

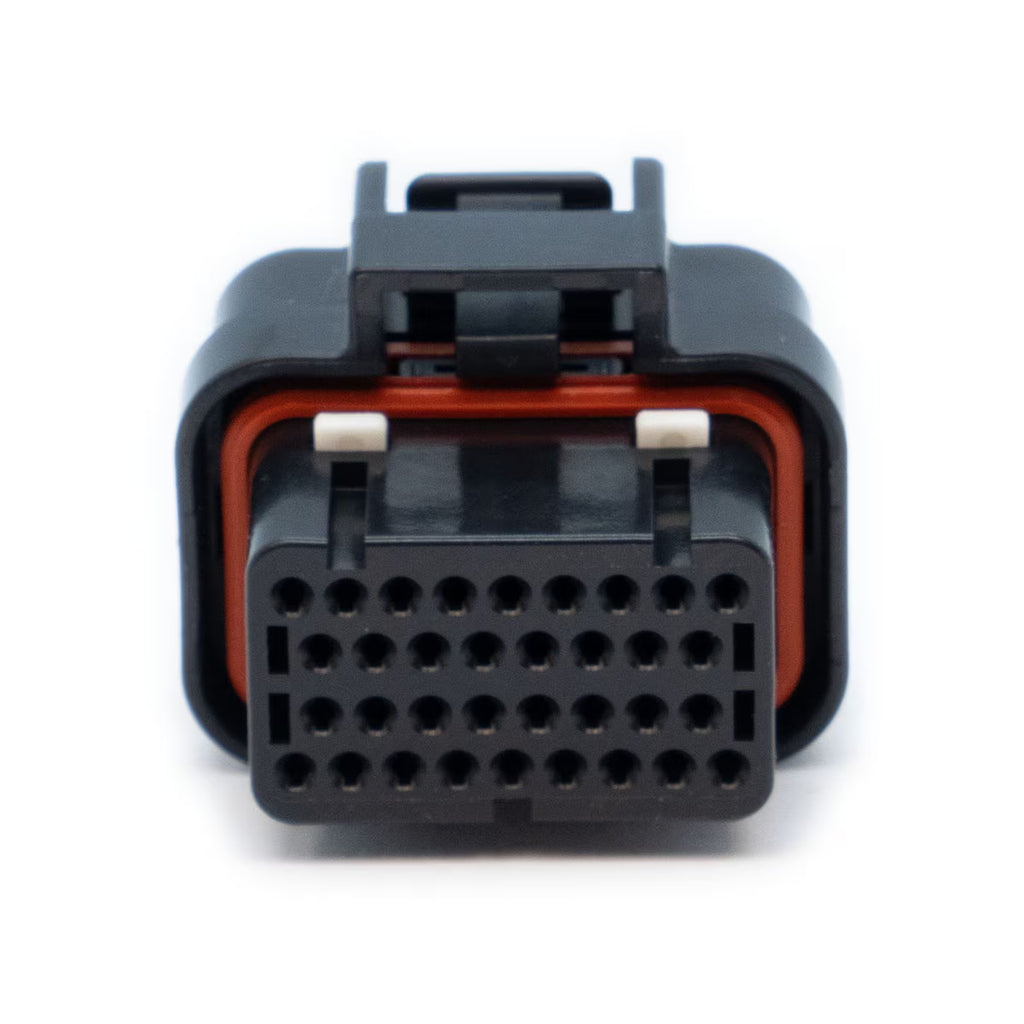

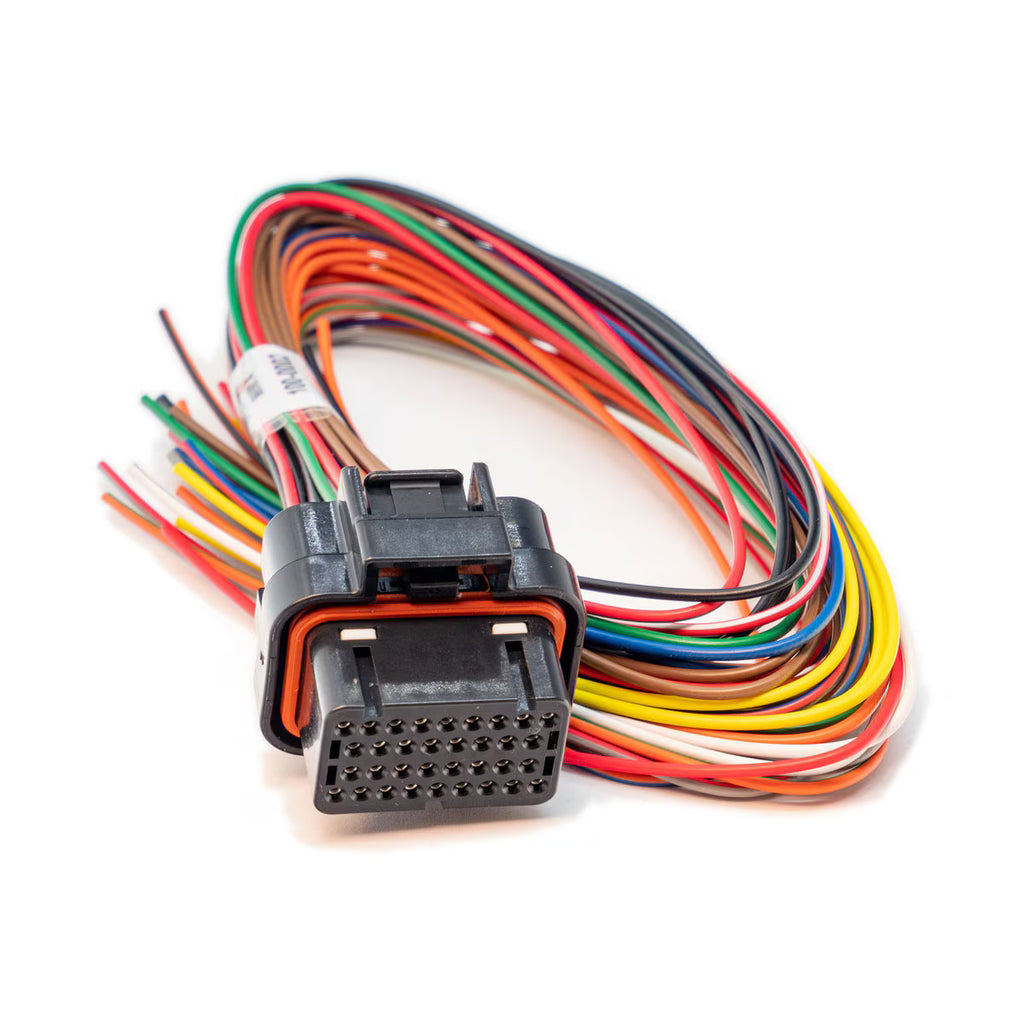

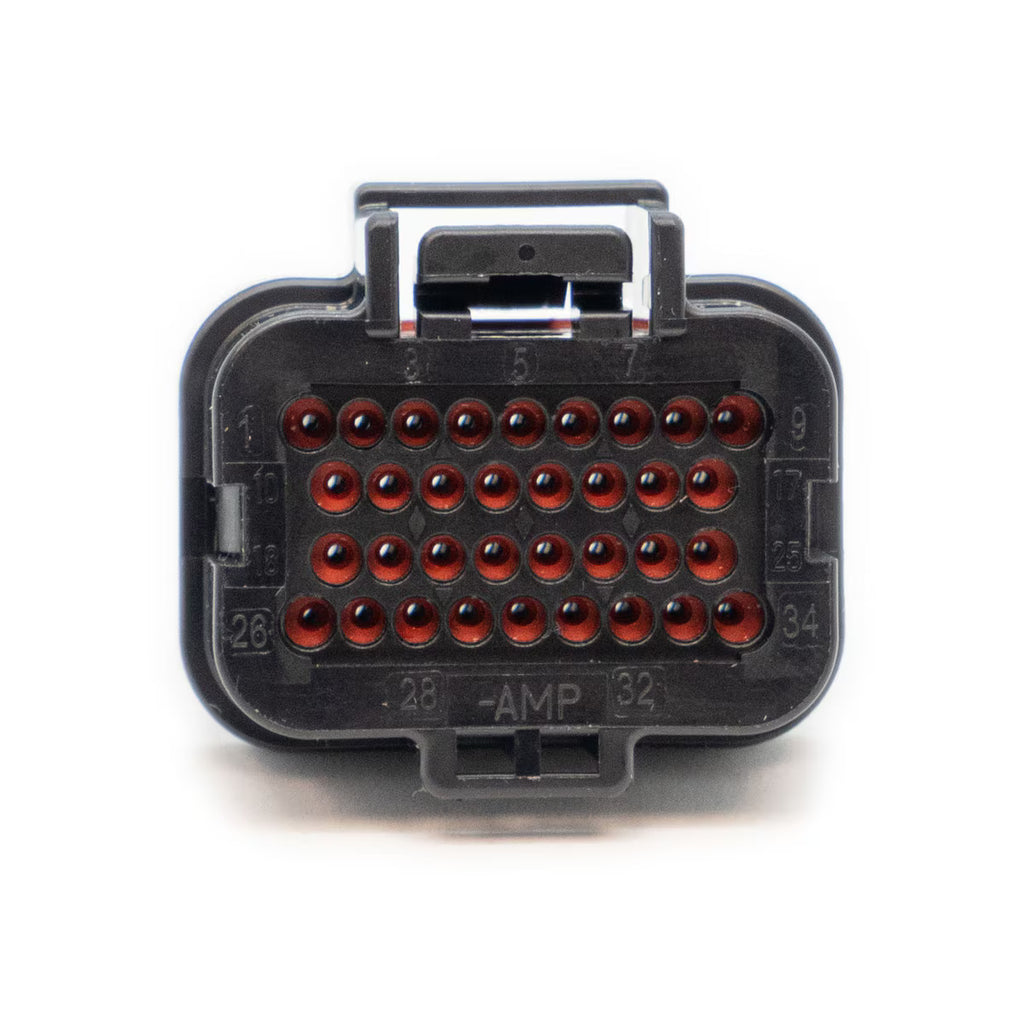

Perfect for all custom wiring jobs utilising Link WireIn ECUs. The ‘A’ Loom has a Link ‘A’ ECU connector at one end and unterminated wires at the other. All wires are colour coded to match the manual.

The Link looms use 0.75mm2 wire for the 2 red wires (pin A5 & B5) and the 4 black power grounds (A25,A34,B25,B34). All other wires are 0.5mm2.

Added features of 2.5m and 5m ‘A’ Looms include:
-Shielded Dual Core wires for trigger signals
-Added ground and 5V wires spliced in with labels suggesting pin use

Suitable for:

• All Link G4X WireIn ECU’s (Note: Loom B will also be required for the Storm/Fury/Xtreme)
• Link G4+ Thunder (Note: Loom B and connector kits C and D may also be required)
• Link G4+ Atom (NB: Does NOT suit the earlier G4 Atom models. I.e. G4+ only)
• Link G4+ Atom II
• Link G4+ Monsoon
• Link G4 Storm
• Link G4+ Storm Blue
• Link G4+ Storm Black (Note: Loom B will also be required)
• Link G4 RX
• Link G4+ Fury (Note: Loom B will also be required)
• Link G4 Xtreme (Note: Loom B will also be required)
• Link G4+ Xtreme (Note: Loom B will also be required)
• Vipec V44
• Vipec i44
• Vipec V88 (Note: Loom B will also be required)
• Vipec i88 (Note: Loom B will also be required)
