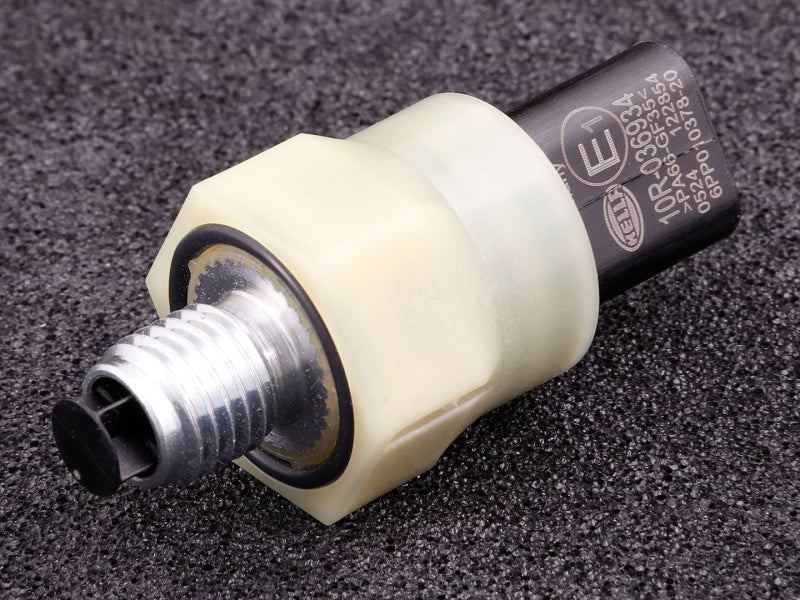

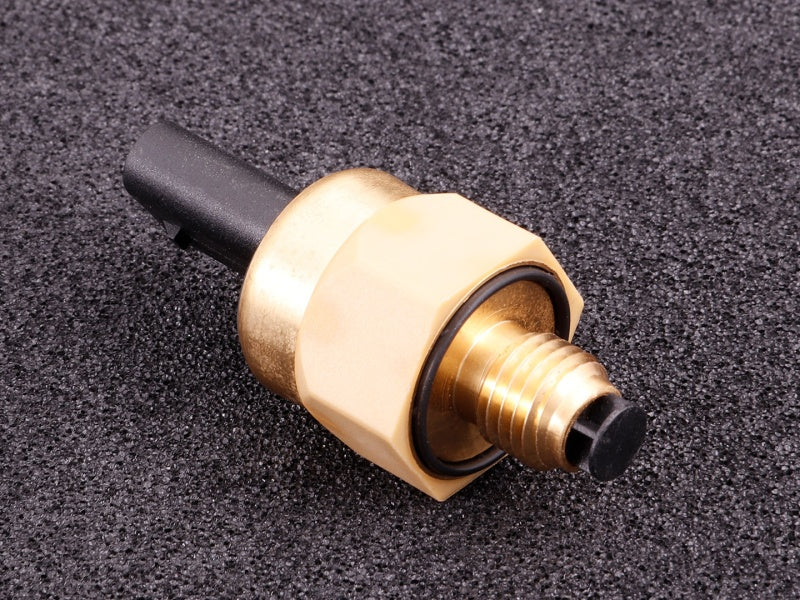

MaxxECU - Liquid pressure and temperature sensor (10bar / 160 deg C) HELLA, multi (digital PWM)
$119.00
SKU: 2369
Digital sensor transmitting both temperature and pressure in the same output wire, supported by MaxxECU.
For oil pressure up to 10bar and temperature up to 160 deg C.
M12X1,5 thread.

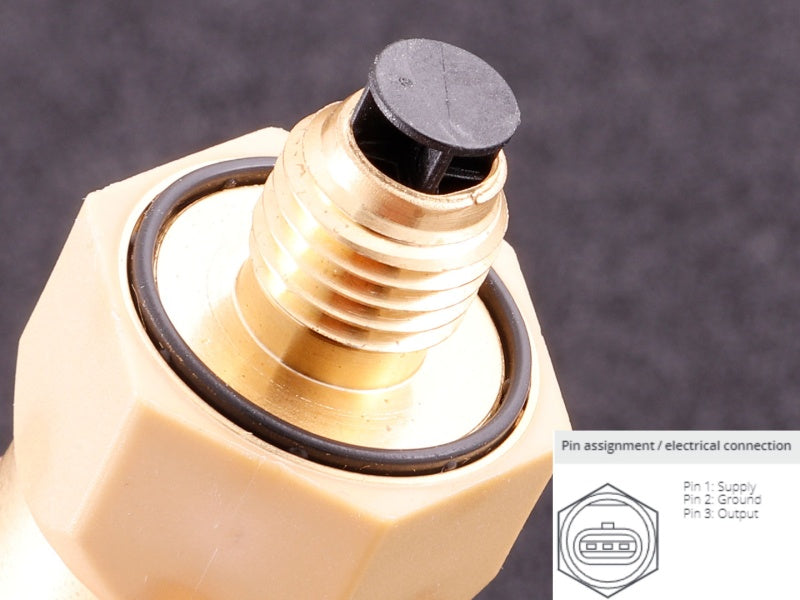

Pin 1: +5V Supply.
Pin 2: SGND.
Pin 3: Output signal (to MaxxECU DINx).
(looking into the sensor, with the lock phased upwards).
