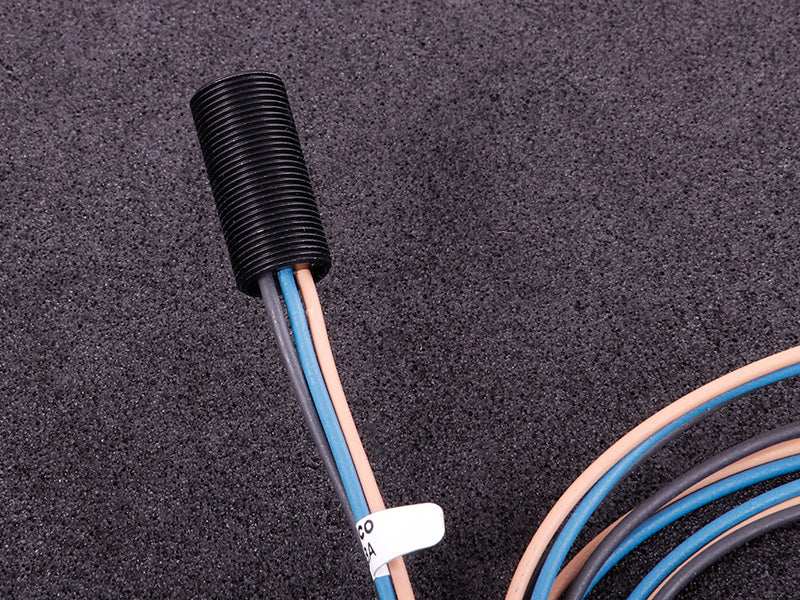

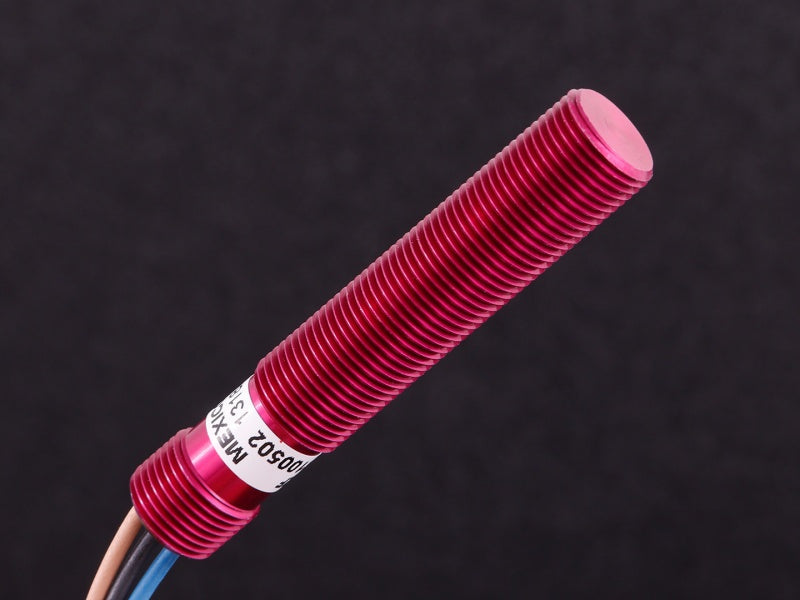

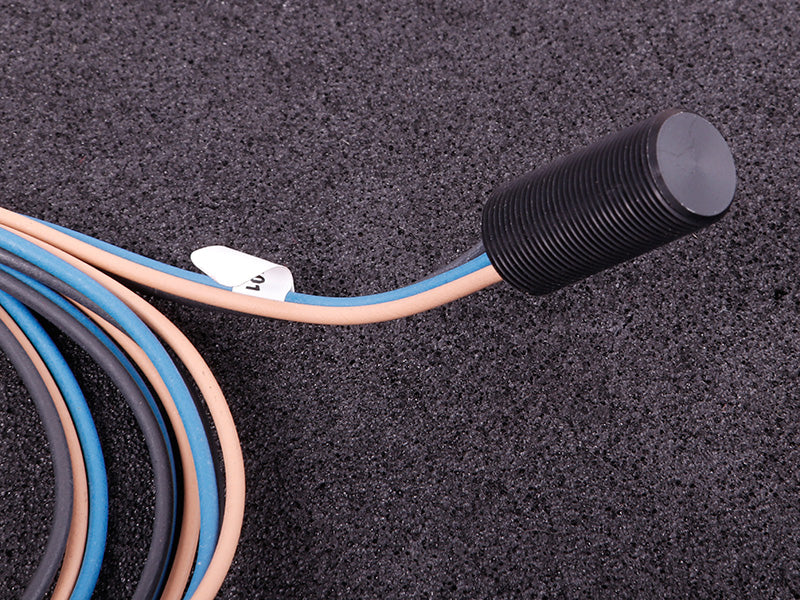

MaxxECU - Cam Position Sensor Digital (Hall)
Short (25mm Thread)
$80.00
Skip to product information
MaxxECU - Cam Position Sensor Digital (Hall)
$80.00
SKU: 2012
No Import Brokerage Fees
Digital cam position sensor for detection of cam position.
Pulldown output. Requires pull-up resistor (usually built into the ECU).
Detects targets of steel. 5-24v power supply.

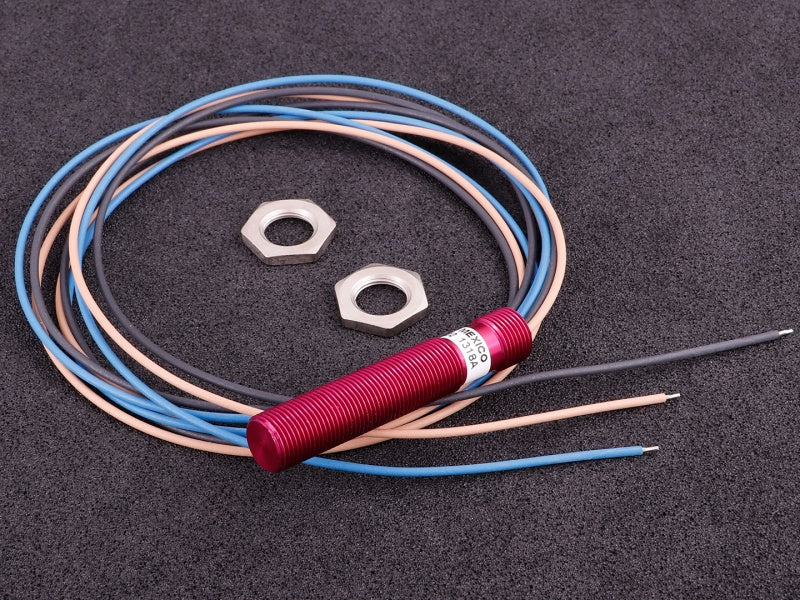

Including nuts for mounting the sensor.
This also serves as a general crank trigger (tested with 60-2 trigger wheel up to 8000rpm with MaxxECU).

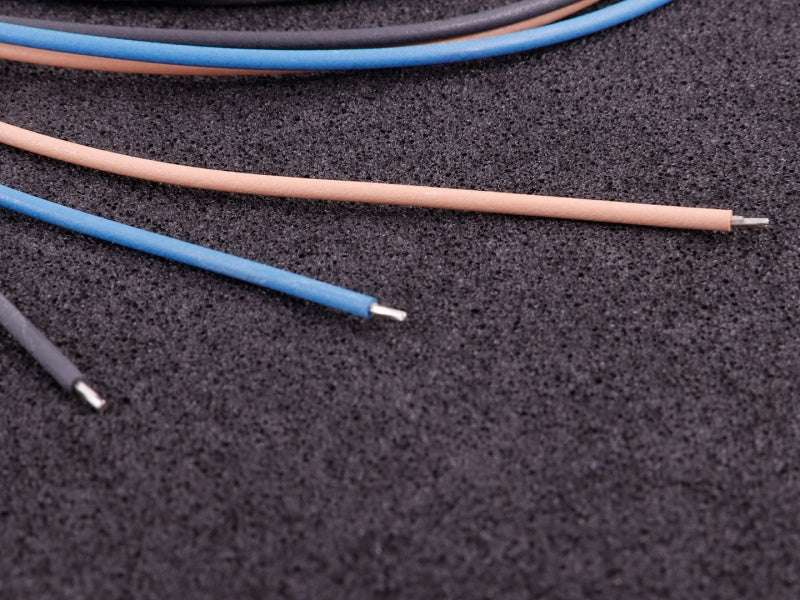

Brown: +5-24v
Black: Output
Blue: Sensor GND
15/32-32 thread, 25mm long.
Motorsport & Competition Notice: This performance component is engineered and intended strictly for off-road closed-course racing and organized motorsport competition use.
