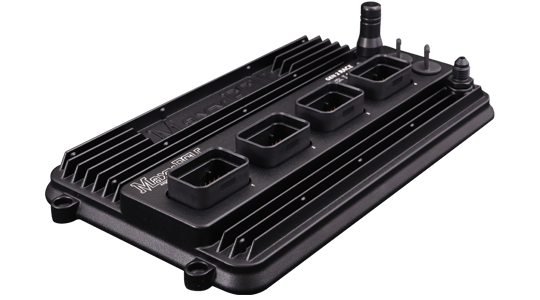

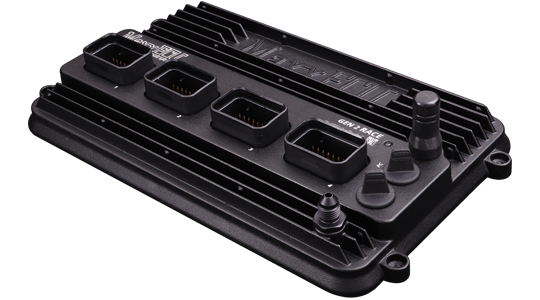

MaxxECU - GEN2 RACE

$2,602.00

ECU version Basic w/ connector kit Flying Lead kit w/ 1x LSU 5.2 Flying Lead kit w/ 2x LSU 5.2

SKU: 2423

When every millisecond matters, on the street, track or dragstrip, the GEN2 RACE gives you access to virtually all engine data, allowing you to fine-tune every aspect for peak performance. It comes with the intuitive MTune software for seamless tuning and real-time monitoring, plus full control with the wireless MDash Android app, taking your setup to the next level.

MaxxECU GEN2 RACE inputs

8 pulse inputs (VR/HALL): 2 with selectable 5/12V power supply, all with selectable pullups.
24 Analog inputs (selectable pullups)
8 Exhaust Gas Temperature inputs (TYPE-K)
Dual wideband lambda (LSU 5.2/4.9/4.2)
Dual knock sensor input

MaxxECU GEN2 RACE outputs

16 injectors (Peak-hold high/low impedance) / GP outputs
12 IGN / GP outputs (selectable +5V/12V/GND)
8 GP Outputs (GND)
4 GP Outputs (+12V)
4 GP Outputs (H-bridge/E-Throttle)

Technical:

Superseal 1.0 connectors
550 kPa MAP sensor (4.5 bar / 65 PSI boost), user-serviceable,with BSP 1/8 thread
3-axis accelerometer (up to 8 G)
ARM dual core CPU
6-22V operating voltage
16GB internal log capacity, 1000Hz, all 1600+ channels
USB-C 480mbit/s (MTune PC communication)
USB-C 12mbit/s (tablet charging).**
WIFI communication with MTune and MDash**
Bluetooth connectivity with MDash
Dual CAN bus for expansion modules, OEM vehicle CAN, OBDII, CAN gearbox control
Resolution on ignition: 0.1 degrees
Resolution on injectors: 0.001 ms
Performs fuel and ignition calculations 3,000 times per second.
200Hz sampling rate on all EGT inputs
2000Hz sampling rate on analog/digital inputs
Weight: 700g
240x138x35mm including protruding connectors

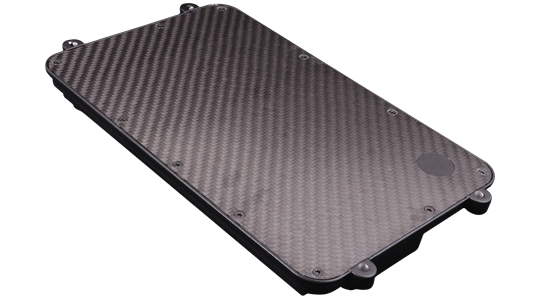

Black powder-coated aluminium case
All inputs and outputs are safeguarded against overvoltage, reverse polarity, and short circuits.
