MaxxECU - Mitsubishi EVO IV-VIII RACE PlugIn

The EGR valve is not controlled.
Stock EVAP can be removed and freeing up GPO 7 for extra in/out on MaxxECU. For using the car's standard ODB-2 port an external wiring to ODB-2 port is needed.

MaxxECU RACE is flexible,reliable and fast. MaxxECU will give you full engine control!

• 8 built-in exhaust temperature (type-k) amplifiers (requires secondary cable harness)

• Built-in 400kPa(3bar boost) MAP-sensor

• Fast and reliable USB PC-communication

• Android MDash app wireless BT-communication as dash

• Stock MAF-sensor can be removed (if exist) and replaced with MaxxECU internal MAP sensor

• Control orginal idle solenoid, AC, tachometer and other original equipment*

• Fuel injectors can be replaced with optional high or low ohm

• Stock lambdasensor(s) must be removed and replaced with included LSU 4.2 wideband oxygen sensor

• No change in the vehicle's original system needs to be done*

• MaxxECU product info - RACE
• MaxxECU Support (information / wiring)
• Technical plugin documentation

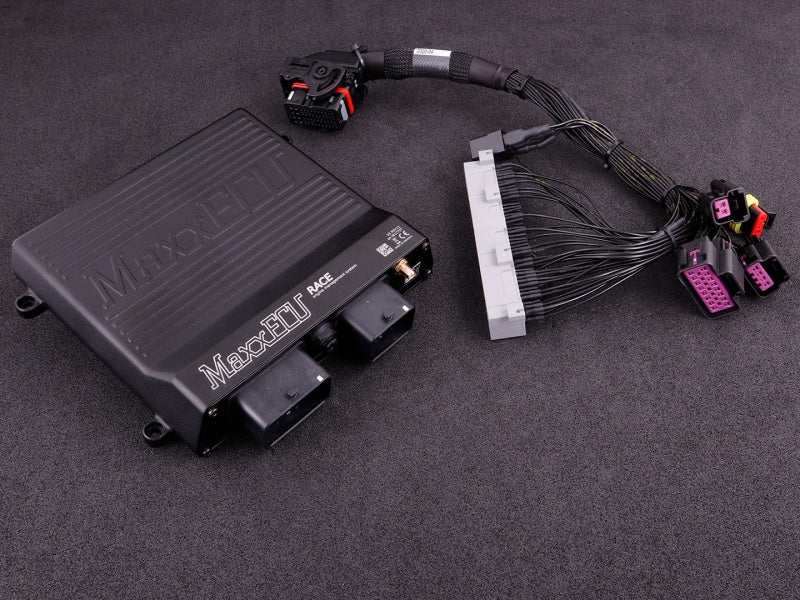

Standard bundle include the following:

MaxxECU - RACE unit

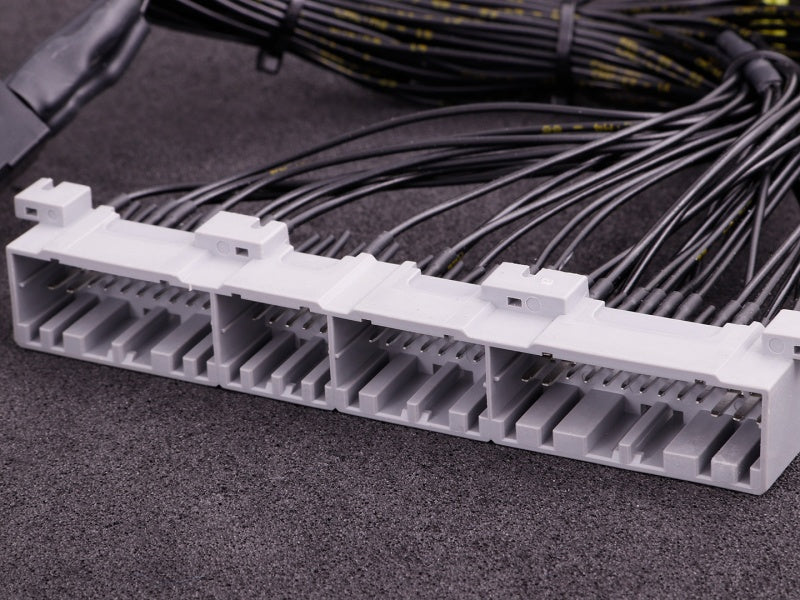

MaxxECU - Plugin adapter for Mitsubishi EVO IV-VIII

MaxxECU - push-lock to barb (MAP-sensor)

MaxxECU - USB PC cable 1.5m (STREET/V1/RACE)

MaxxECU - Bluetooth Antenna

Extra add the following:

Bosch - LSU 4.2 wideband Lambda sensor

MaxxECU - Plugin lambda cable (16-pin)

MaxxECU - Connector 6-way socket housing (LSU 4.2 wideband sensor)

MaxxECU - hose kit MAP sensor (incl nipples)
