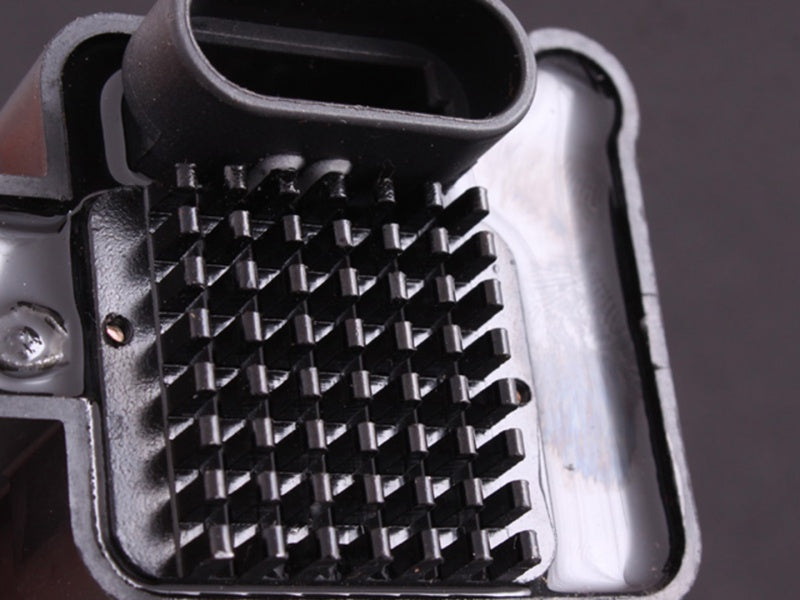

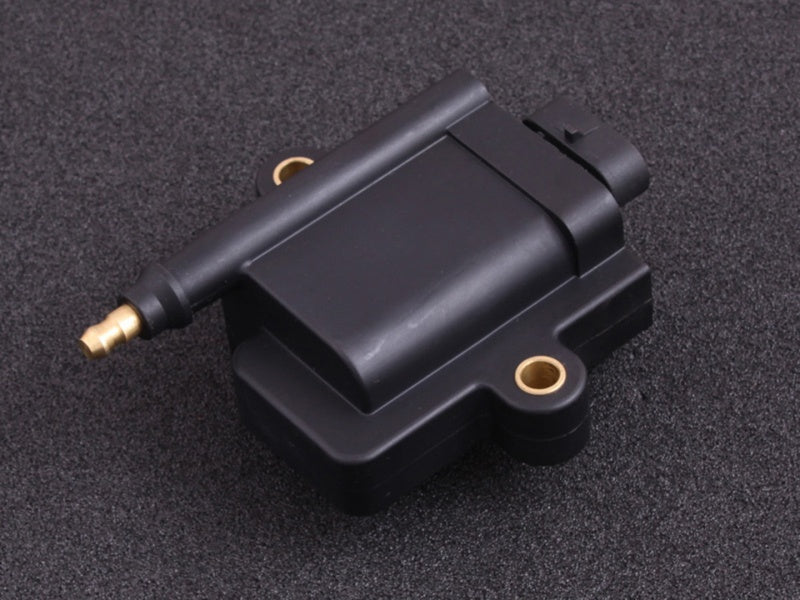

MaxxECU - Mototron coil / IGN1 with integrated amplifier

Mototron coil
That very affordable option where not VAG ignition coil is enough.

Connector is not included
Pin A: Signal from ECU.
Pin B: GND.
Pin C: GND.
Pin D: GND.
Pin E: +12V.

Spark energy: 31-105mJ.
Primary current: max 7.5A.
Weight: 380g.
Primary resistance: 0.6ohm.
Recommended max dwell@14v: 4ms.
