MaxxECU - PRO
ECU Only
$3,200.00
Skip to product information
MaxxECU - PRO
$3,200.00
SKU: 1815
No Import Brokerage Fees

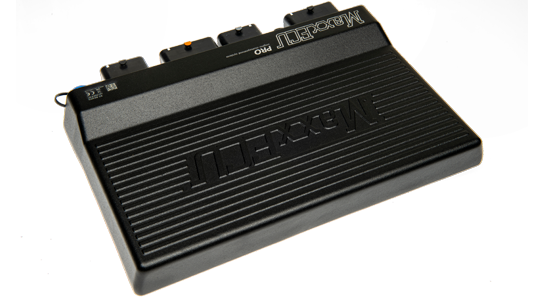

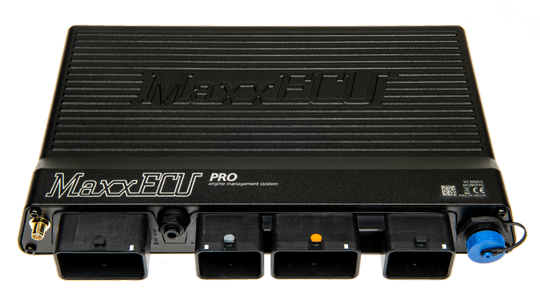

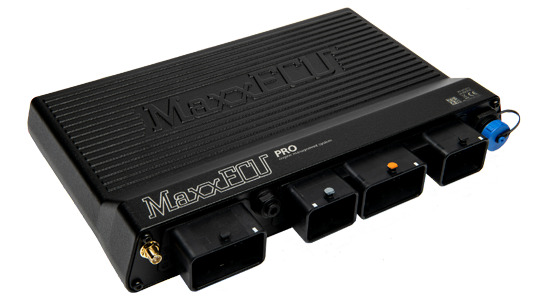

MaxxECU PRO is a product developed from the ground up to be flexible, reliable and fast. MaxxECU PRO gives the user complete engine control!
Fast Facts:
- Up to 12 cylinders sequentially.
- 16 injector outputs (low or high impedance injectors).
- 12 ignition outputs
- 12 inputs for exhaust gas temperature sensors (EGT).
- Built in MAP-sensor for boost pressure up to 3bar (400Kpa).
- Built in driver for dual WBO sensors (LSU 4.2 and 4.9 compatible)
- Dual E-Throttle(DBW) support.
- Dual knock sensor input
- 16 optional 0-5V inputs.
- 6 additional temperature inputs.
- 10 additional digital inputs (4 of them can be used with VR sensors)
- 30 auxiliary outputs (GPO), 8 of them +12v outputs
- 2 0-5V output.
- 1 5-10v output (sensor output).
- Dual CAN bus.
- Waterproof aluminum case.
- Connectors, software and settings completely backwards compatible with standard MaxxECU. Easy upgrade.
Standard Kit Includes
1x · SKU 1469

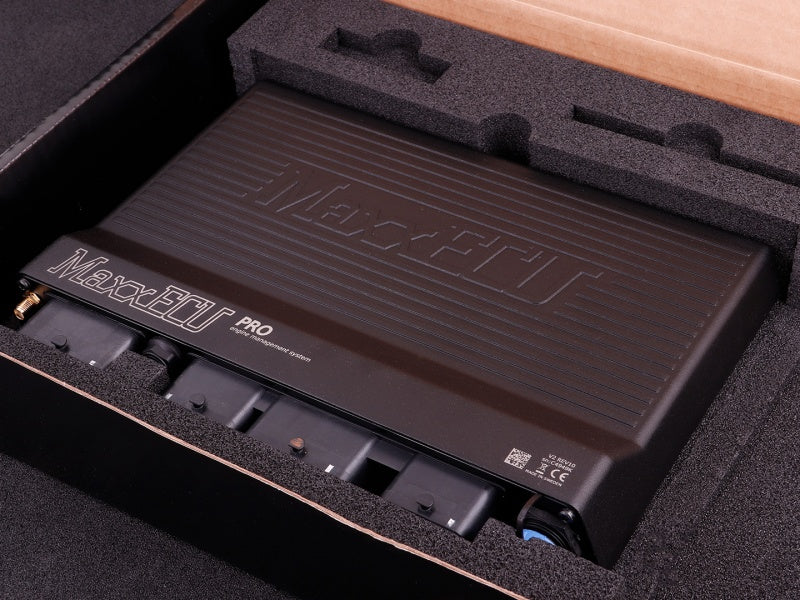

MaxxECU PRO unit only
1x · SKU 1852
MaxxECU Quick Guide (English)
1x · SKU 871
MaxxECU V1/RACE/PRO flying lead wiring harness connector 1
1x · SKU 949
MaxxECU Bluetooth mobile antenna
1x · SKU 1767
MaxxECU push-lock to barb (MAP-sensor)
1x · SKU 1606
MaxxECU PRO / RACE H2O USB-cable 1.5m
2x · SKU 1235
MaxxECU sticker
1x · SKU 2214
MaxxECU PRO bracket kit
1x · SKU 2219
MaxxECU PRO wiring diagram (printed)
Premium Kit (LSU 4.2 or LSU 4.9) — Adds to Standard
Adds Connectors 2, 3 & 4 flying lead harnesses + 2x Bosch LSU 4.2 (or 1x Bosch LSU 4.9) wideband sensors and connectors.
1x · SKU 1470
MaxxECU PRO flying lead harness 3m connector 2 (EGT)
1x · SKU 1468
MaxxECU PRO flying lead harness 3m connector 3 (cyl 9-16, E-Throttle, extra out)
1x · SKU 1467
MaxxECU PRO flying lead harness 3m connector 4 (extra in/out, CAN 2, KNOCK)
2x · SKU 107
Lambda Sensor Bosch wideband lambda LSU 4.2
2x · SKU 894
Connector 6-way socket housing (LSU 4.2 wideband sensor)
1x · SKU 1052
MaxxECU extra cable for installations
1x · SKU 928
MaxxECU hose kit (MAP sensor incl nipples)
2x · SKU 2018
Lambda Sensor Bosch wideband lambda LSU 4.9 (0281 004 191)
2x · SKU 1533
Connector 6-way socket housing (LSU 4.9/5.2 wideband sensor)
Motorsport & Competition Notice: This performance component is engineered and intended strictly for off-road closed-course racing and organized motorsport competition use.
