MaxxECU - PWM module kit
$321.00
Skip to product information
MaxxECU - PWM module kit
$321.00
SKU: 942
No Import Brokerage Fees
PWM module for variable control of pumps, fans, etc.
Discontinued product, we will not produce more
Connects to MaxxECU via CAN.
Primarily intended to control large fuel pumps.
By reducing the pump speed at low load, it's reducing power consumption, noise, and wear on the pump. It also reduces the heating of the fuel.
Can also control any other loads such as fans, hydraulic pump, etc.
Max load 60A (peak load such as fuel pumps)
50A max load for continuous loads like a fan.
Protected against overload and temperature.
Wiring harness, fuses, fuse holders and main relay included!
NOTE Waterproof and can be mounted under the vehicle!

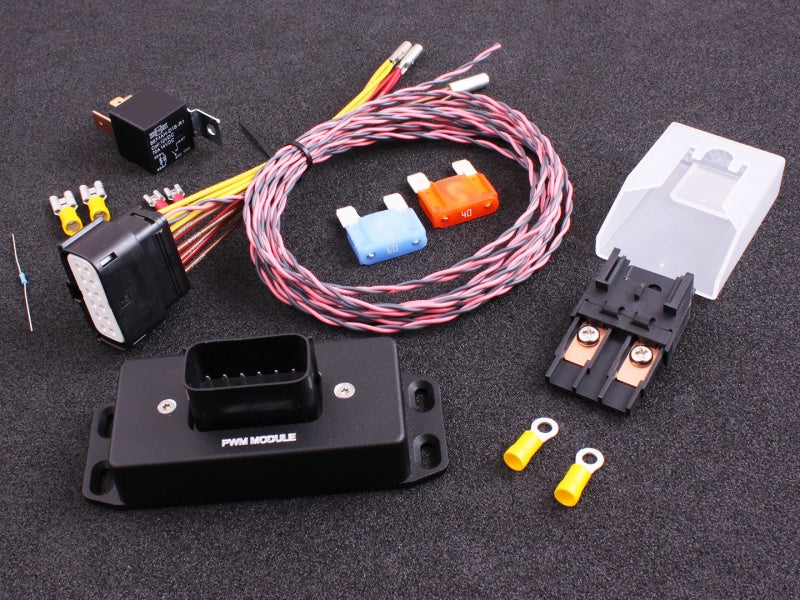

Products Included in Kit
1x · SKU 1651
MaxxECU PWM module (unit only)
1x · SKU 1276
MaxxECU wiring harness for PWM module
1x · SKU 1237
Fuse Holder Maxi Fuse
1x · SKU 1238
Fuse 60A Maxi Fuse
2x · SKU 1652
Eyelet terminal 6mm2 5.3 mm
1x · SKU 1271
Relay 70A
2x · SKU 1653
Female terminal 0.5-1.5mm2 red 6.3x0.8mm
2x · SKU 1647
Female terminal 2.5 -6.0mm2 brass tinned 9.5x1.2mm
Motorsport & Competition Notice: This performance component is engineered and intended strictly for off-road closed-course racing and organized motorsport competition use.
