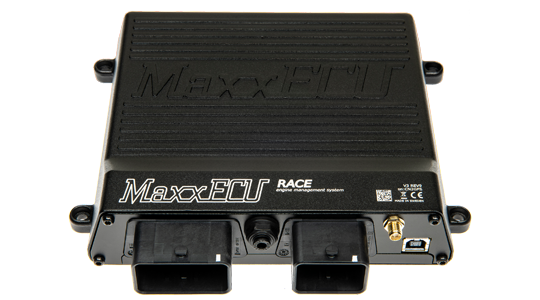

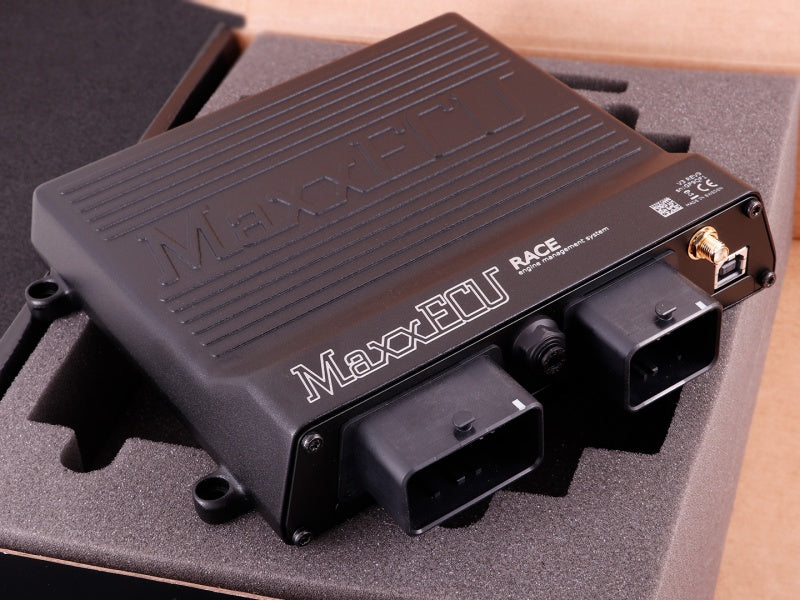

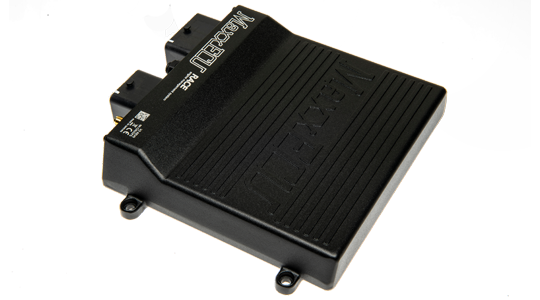

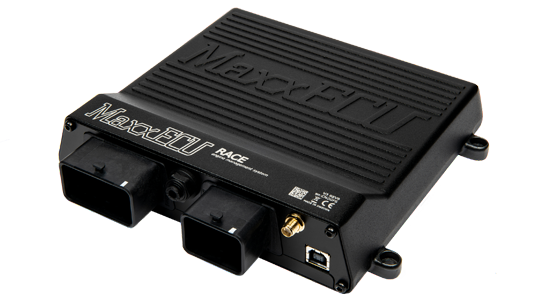

MaxxECU - RACE

MaxxECU RACE, based on our MaxxECU PRO and uses the same easy to use, yet powerful MTune software.

Specification:

• All 3-12 cylinder engines (4-stroke)
• Up to 8 cylinders fully sequentially
• Up to 12 cylinders in wasted spark
• Lambda (WBO) sensor. Supports Bosch LSU 4.2, 4.9
• 2 trigger inputs. VR or digital. Automatic trigger level detection
• 2 extra temperature sensors
• 2 knock sensor inputs
• 6 extra 0-5V inputs
• 4 extra digital inputs (VR / hall) or switches
• 8 EGT TYPE-K/N inputs (1200C/2200F) in separate harness
• 8 peak/hold injector outputs
• 8 ignition outputs
• 9 extra LOW DRIVING outputs for additional features
• 2 extra +12V DRIVING outputs
• 4 extra motor outputs

Standard include the following:

MaxxECU - V1/RACE/PRO flying lead wiring harness connector 1

MaxxECU - Bluetooth Antenna

MaxxECU - USB PC cable 1.5m (STREET/V1/RACE)

MaxxECU - push-lock to barb (MAP-sensor)

MaxxECU - extra cable for installations

Premium include the following:

MaxxECU - V1/RACE/PRO flying lead wiring harness connector 1

MaxxECU - RACE Harness Connector 2 (EGT, E-Throttle, extra I/O)

MaxxECU - Bluetooth Antenna

MaxxECU - USB PC cable 1.5m (STREET/V1/RACE)

MaxxECU - push-lock to barb (MAP-sensor)

MaxxECU - extra cable for installations

Bosch - LSU 4.2 wideband Lambda sensor

MaxxECU - Connector 6-way socket housing (LSU 4.2 wideband sensor)

Premium (H2O) include the following:

MaxxECU - V1/RACE/PRO flying lead wiring harness connector 1

MaxxECU - RACE Harness Connector 2 (EGT, E-Throttle, extra I/O)

MaxxECU - Bluetooth Antenna

MaxxECU - Connector 12-way socket housing GT150 (fits MaxxECU harness)

MaxxECU - push-lock to barb (MAP-sensor)

MaxxECU - extra cable for installations

Bosch - LSU 4.2 wideband Lambda sensor

MaxxECU - Connector 6-way socket housing (LSU 4.2 wideband sensor)

MaxxECU - PRO / RACE H2O USB-cable 1.5m
