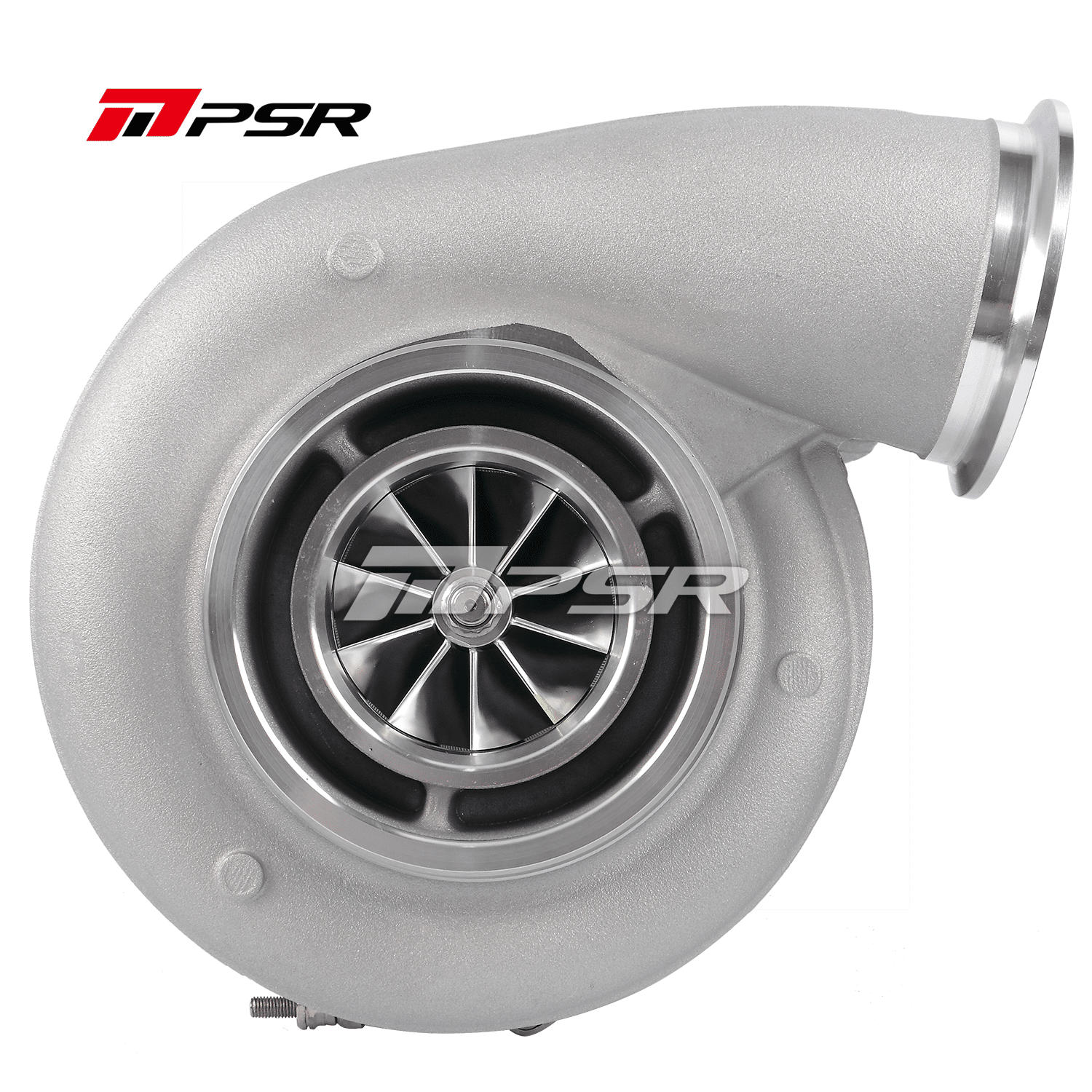

PSR - 475 Journal Bearing Billet Compressor Wheel Turbocharger
Standard / 83/74mm / 0.90A/R T4
$1,020.00
Skip to product information
PSR - 475 Journal Bearing Billet Compressor Wheel Turbocharger
$1,020.00
SKU: 100140009
- Billet compressor wheel with extended tip technology for the ultimate in aerodynamics
- Inconel 713 turbine wheel for high-temperature operation
- T6 Divided turbine housings in 1.15A/R, 1.32A/R or 1.58 A/R with 5″ V Band Outlet 5.75 OD Marmon flange
- T4 Divided turbine housing in 0.9A/R, 1.10A/R or 1.25 A/R with 4” Vband Outlet
Description
Recommending Engine Displacement: 3.0-8.0L
HP Rating 500-1000
Features:
- Compressor Wheel: 75*101mm 7+7
- Billet Compressor Wheels with Extended Tip Technology
- 83/74mm, 87.4/81.7mm, 96/88mm in Turbine Wheel Options
- STD Compressor Cover without Speed Sensor Port integrated
- T51R MOD Compressor Cover without Speed Sensor Port integrated
- -12AN Oil Drain Flange
Details:
- Compressor Inlet: 5″ Slip-Fit
- Compressor Outlet: V-band
- Turbine Housing A/R: 0.9, 1.10, 1.15, 1.25, 1.32 and 1.58 in Option
- Turbine Housing Inlet: T4 Divided and T6 Divided in Option
