$1,650.00

Compressor Housing Option Standard T51R Mod W/O Compressor Housing

Turbine Housing Option 1.00A/R T4 Divided | V-Band Outlet 0.81A/R T4 Open | V-Band Outlet 0.96A/R Dual V-Band W/O Turbine Housing

SKU: 102107002

Ball bearing system provides optimal turbo response & better durability by reducing the shaft-motion
Billet Compressor Wheel with Extended Tapered Tip Technology
Inconel 713c 10 Blade Turbine Wheel
V-Band Flange kit for the exhaust housing included
Max Engine Horsepower: 1100

Description

Billet Compressor Wheel: 68/92.46mm, 7+7 Blade

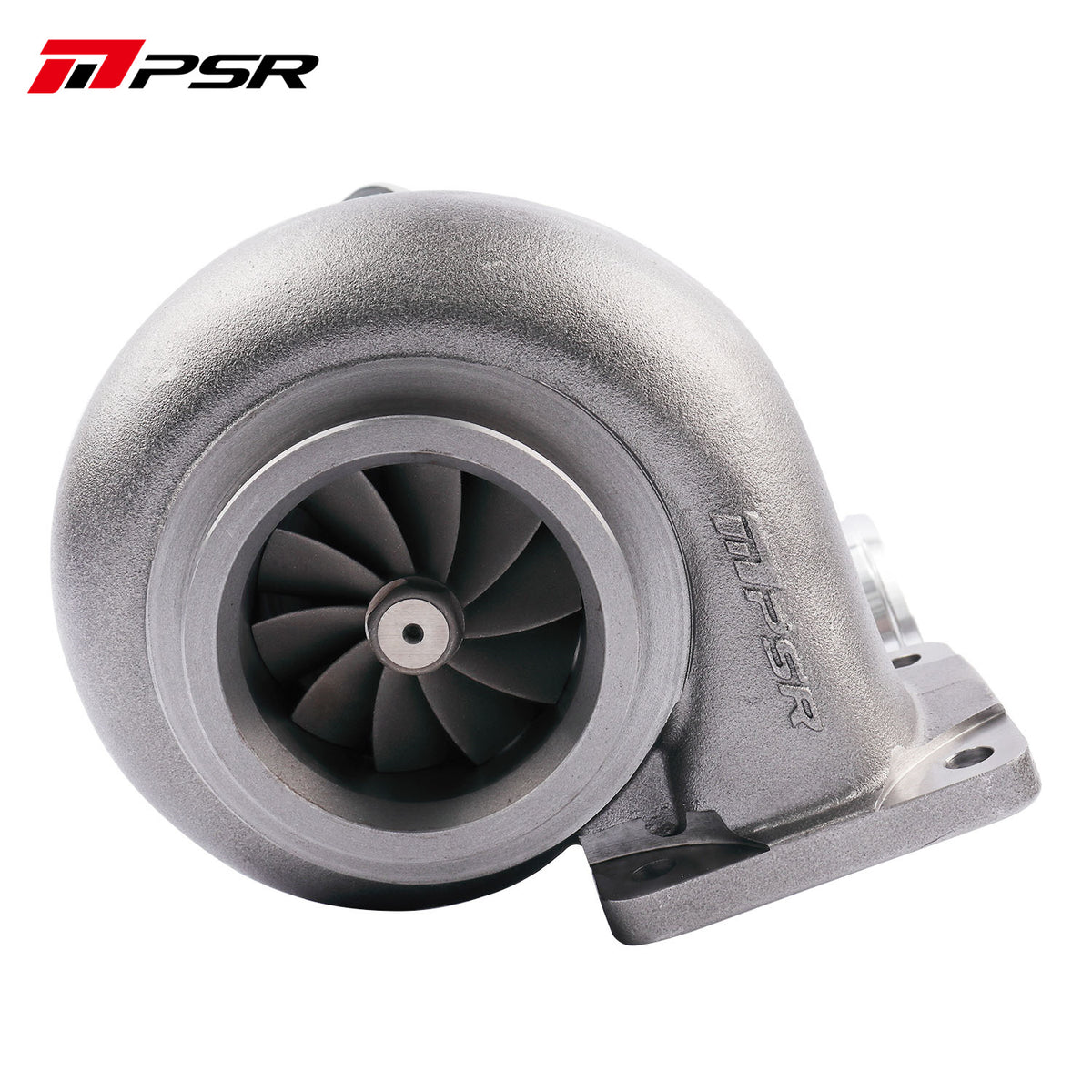

Turbine Wheel: 78.8 / 70.2mm, 10 Blade
Bearing System: Dual Ball Bearing (provides optimal turbo response & better durability by reducing the shaft-motion)
Compressor Cover Inlet/Outlet: 4.0” / 2.5” Hose

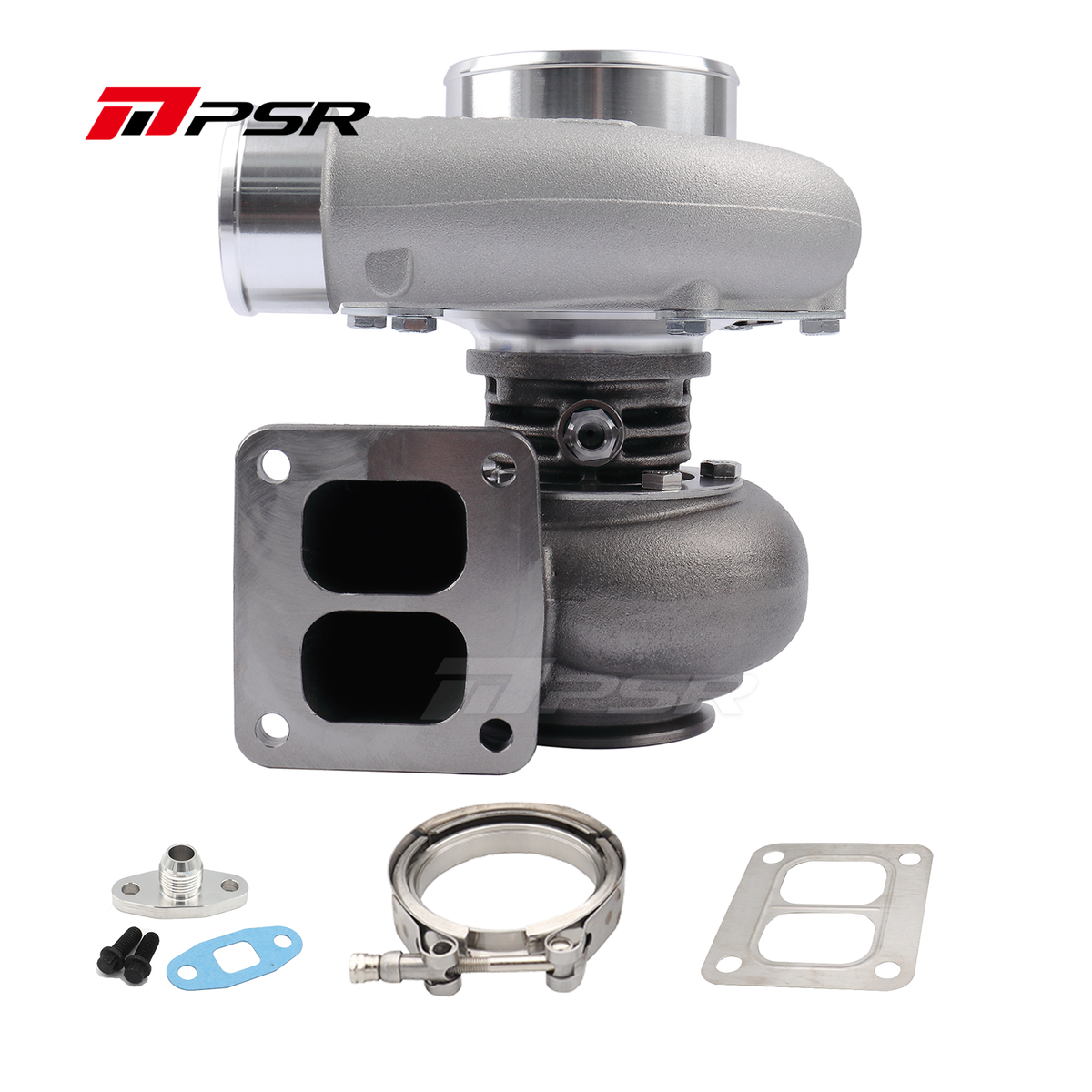

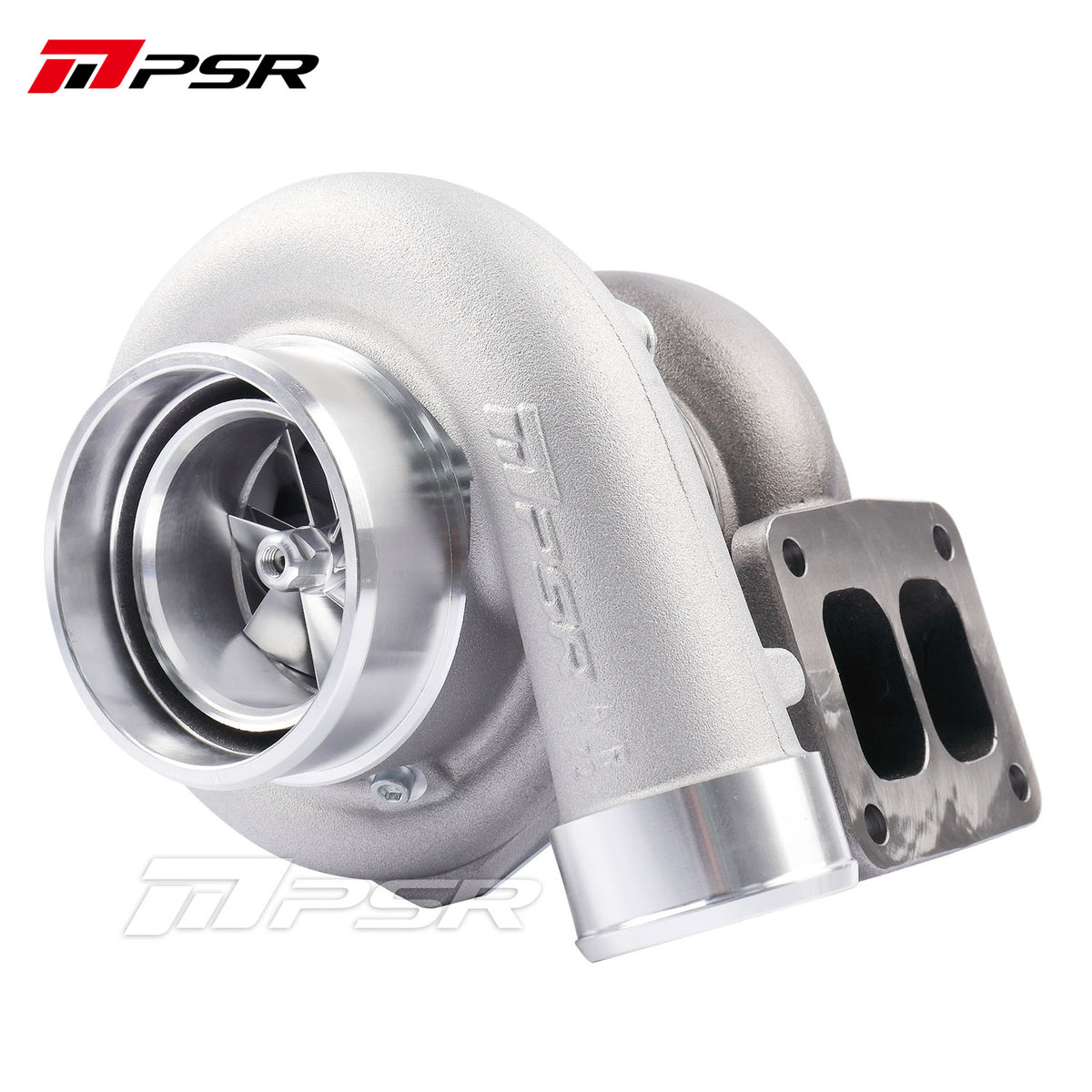

Turbine Housing: T4 Divided 1.0A/R (3″ V-band Outlet), T4 open 0.81A/R (3″ V-band Outlet)
The internal oil feed port is 0.9mm(Oil restrictor is no needed)

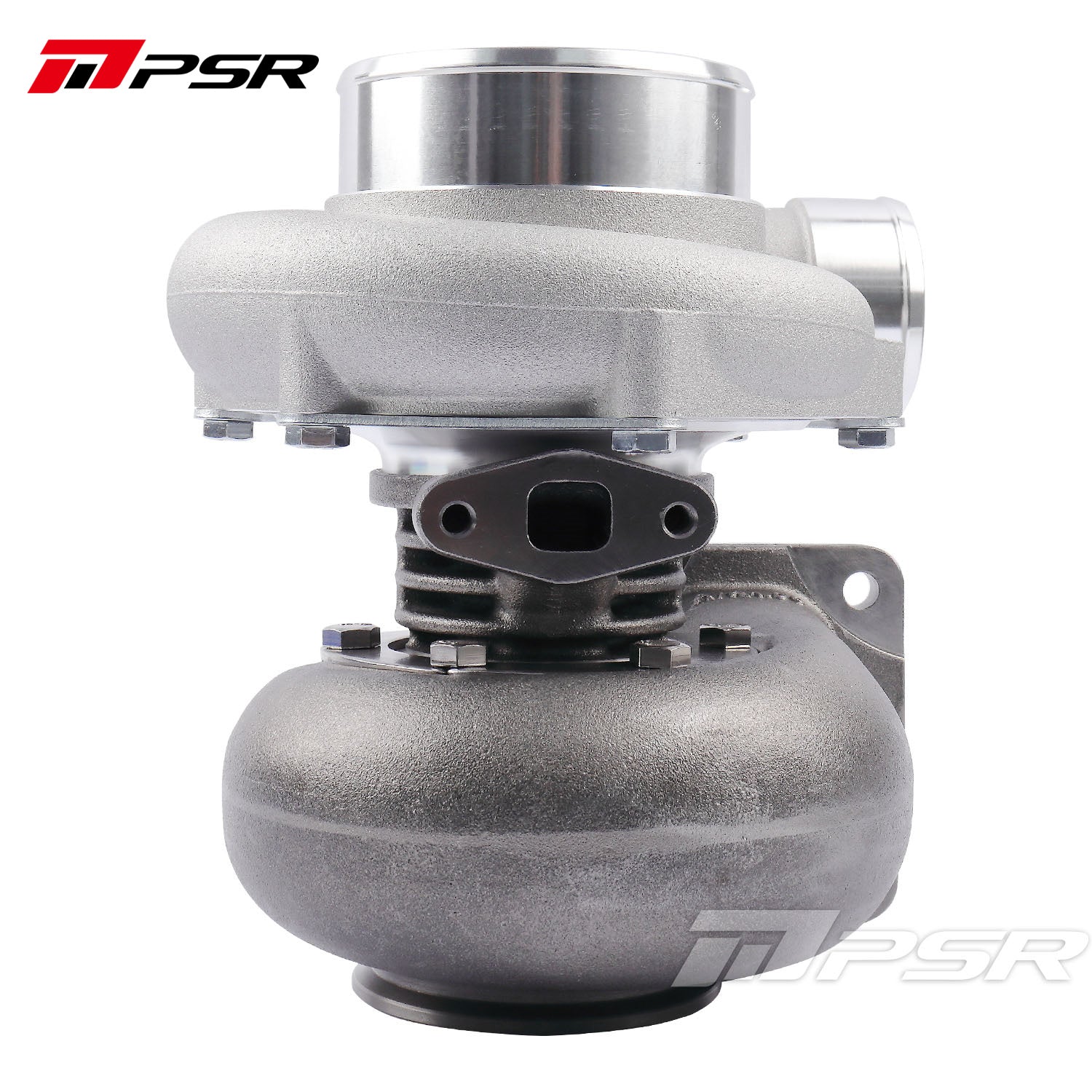

Oil feed fitting: 1/8-27 NPSF(Drawing )
Oil drain: T4 flange(Drawing)

10AN_STD

10AN_EXTENDED

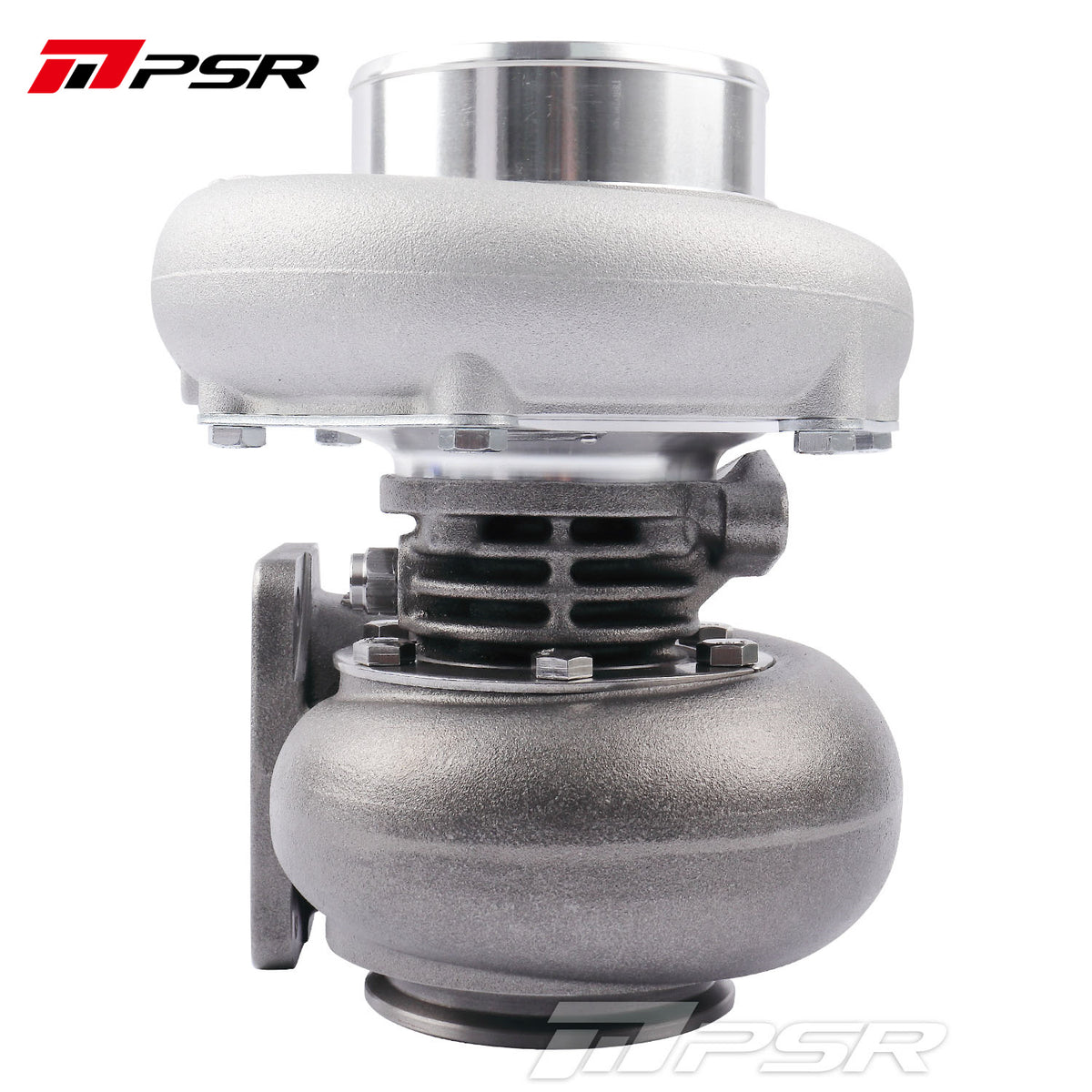

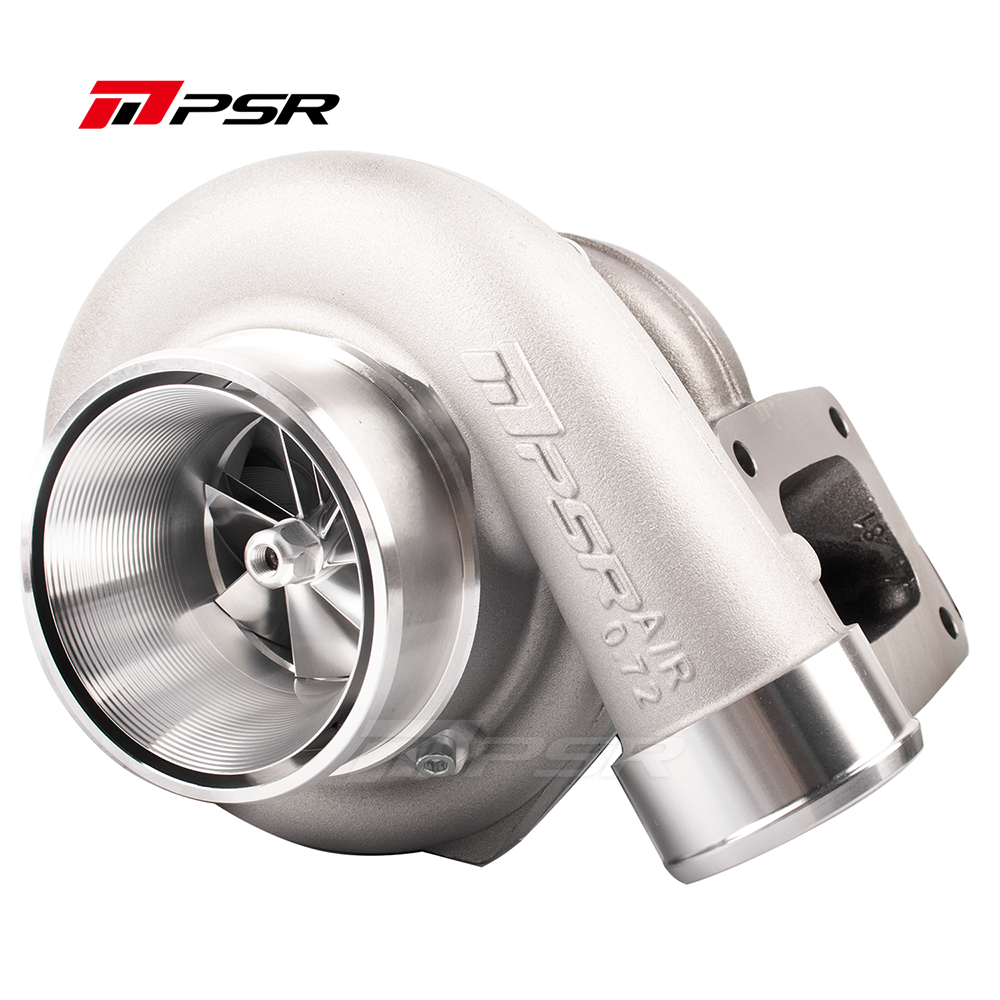

PSR - 6870E Ball Bearing Turbo UP to 1100HP
