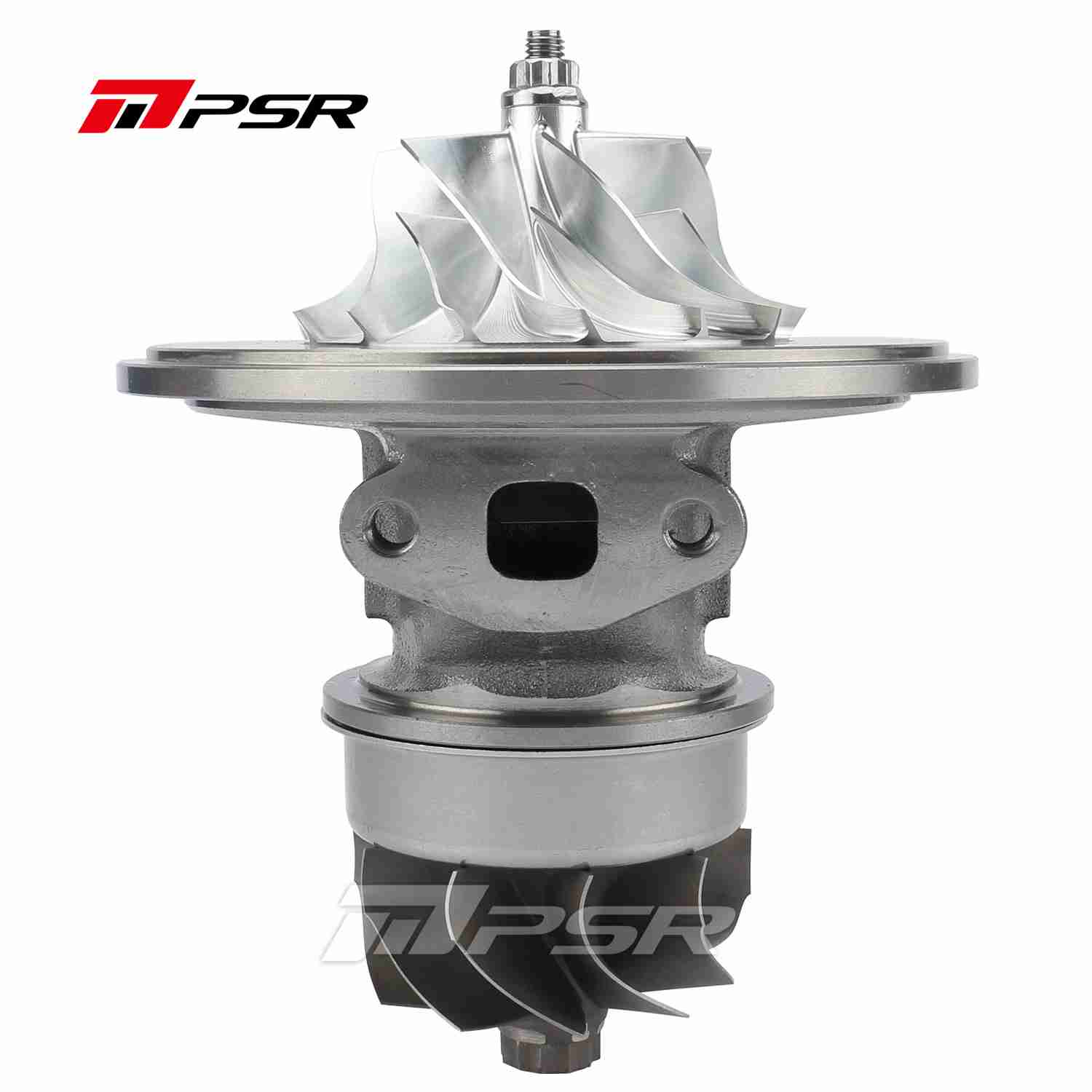

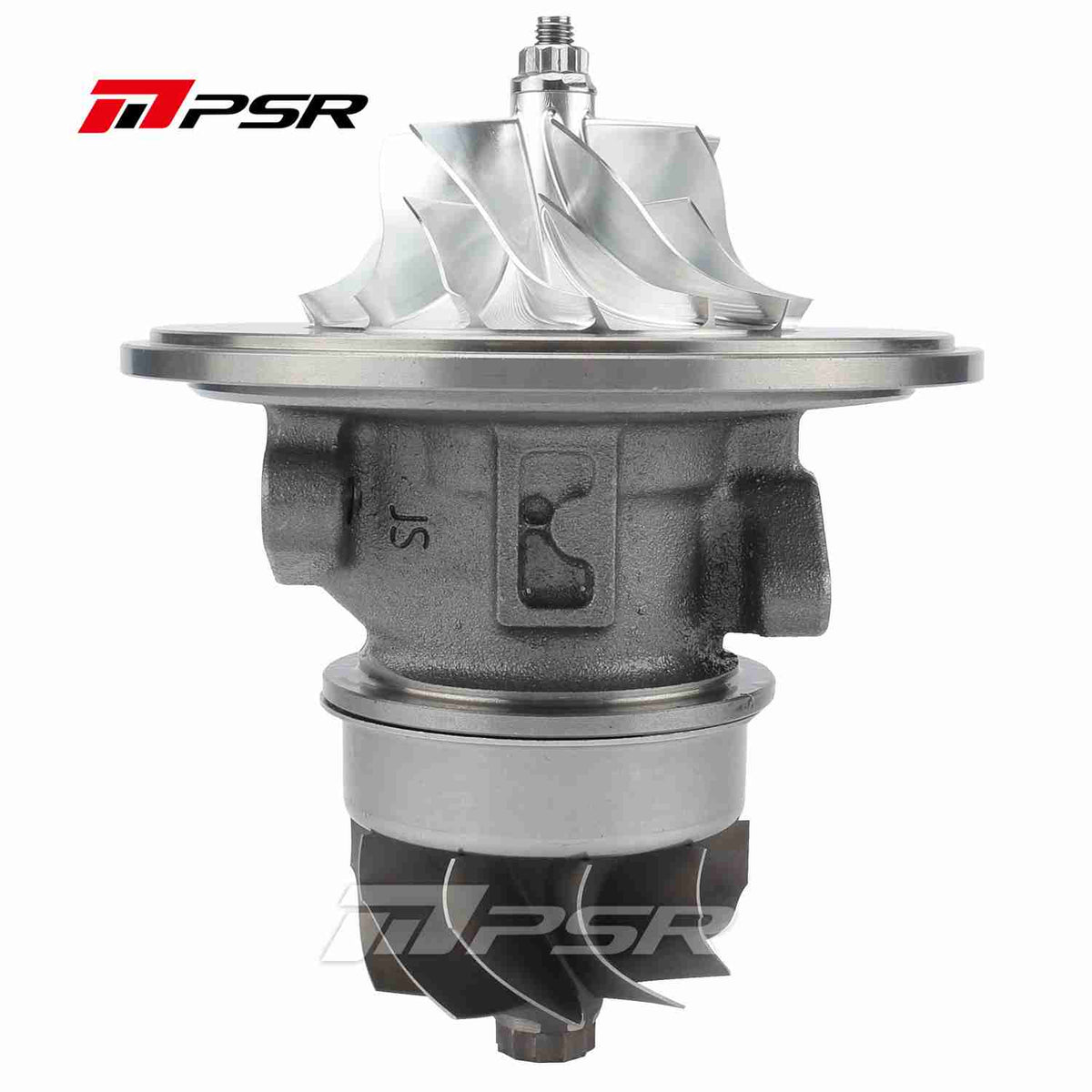

PSR - CHRA only NEXT GEN Billet 363D 366D 369D 372D DUAL CERAMIC BALL BEARING Turbo
63mm / 80*73mm
$865.00
Skip to product information
PSR - CHRA only NEXT GEN Billet 363D 366D 369D 372D DUAL CERAMIC BALL BEARING Turbo
$865.00
SKU: 122130003
***Center Housing Rotating Assembly ONLY***
- Dual Ceramic Ball Bearing Systems
- 3 Options in Billet Compressor Wheels with Extended Tapered Tip Technology
- Inconel 713c 80*73mm Turbine Wheel
- Gen2 compressor cover with ported-shroud inlet and integrated with the speed sensor port
- Max Flow Rate: 100+ lb/min
Description
- Bearing Systems: Dual Ceramic Ball Bearing
- Compressor Wheel: 363D(63*87mm, 7+7), 366D(66*91mm, 7+7), 369D(69*94mm, 6+6), 372D(72*96mm, 10+0)
- Turbine Wheel: 80*73mm
- Compressor Inlet: 4.0 Hose
- Compressor Outlet: 2.5 Hose
- 2 Options in Turbine Housing: T4 Divided 0.91A/R, T4 Open 0.88A/R
- Turbine Outlet: 4.21″ Marmon
- Oil Feed: 1/4″ NPT
- Oil Drain: Std T4 Flange
