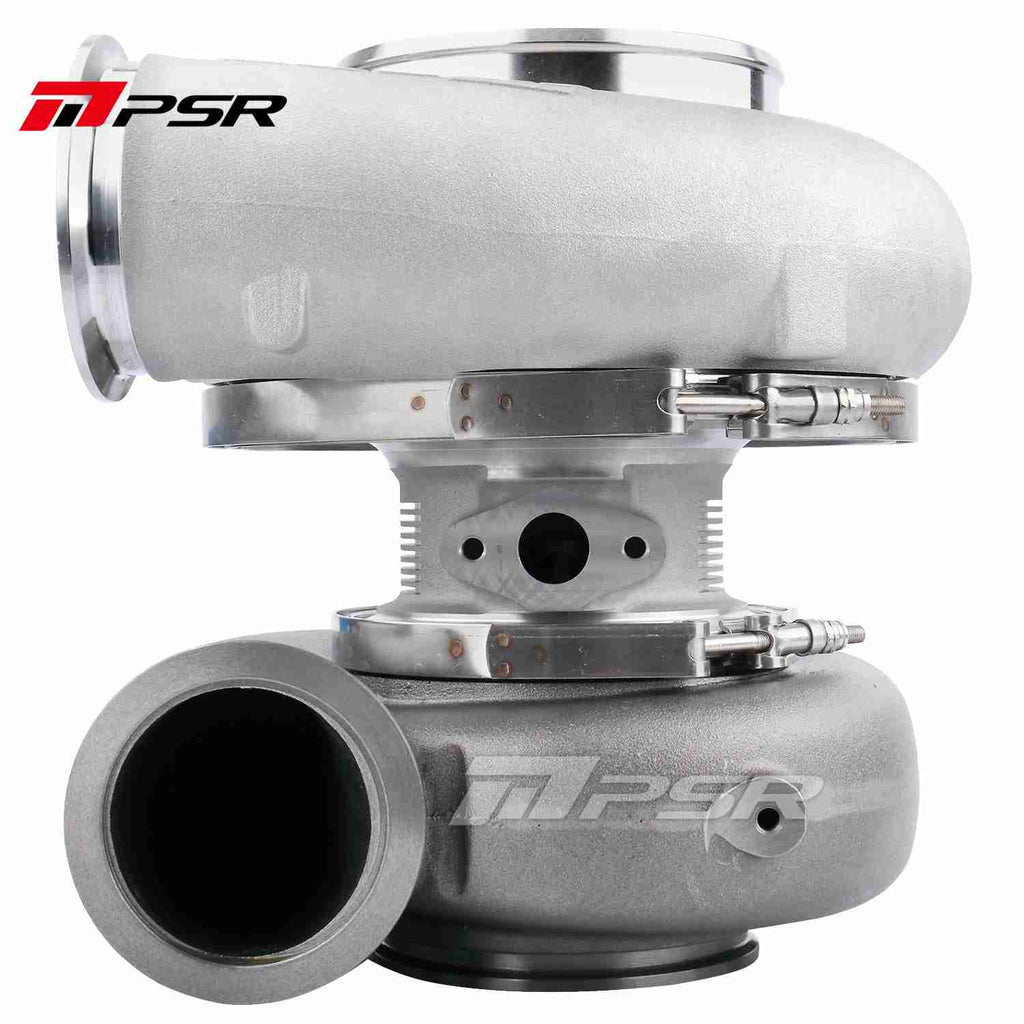

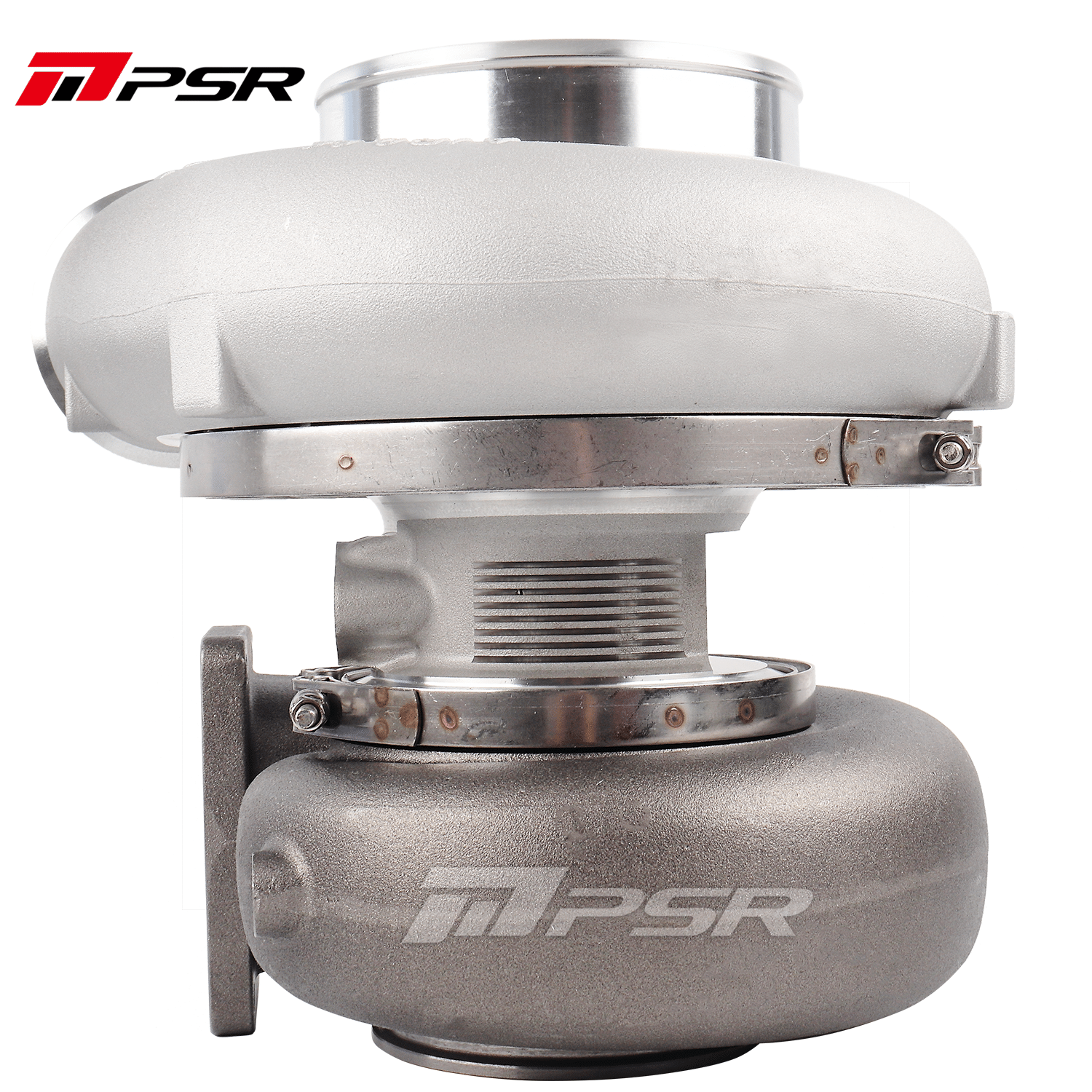

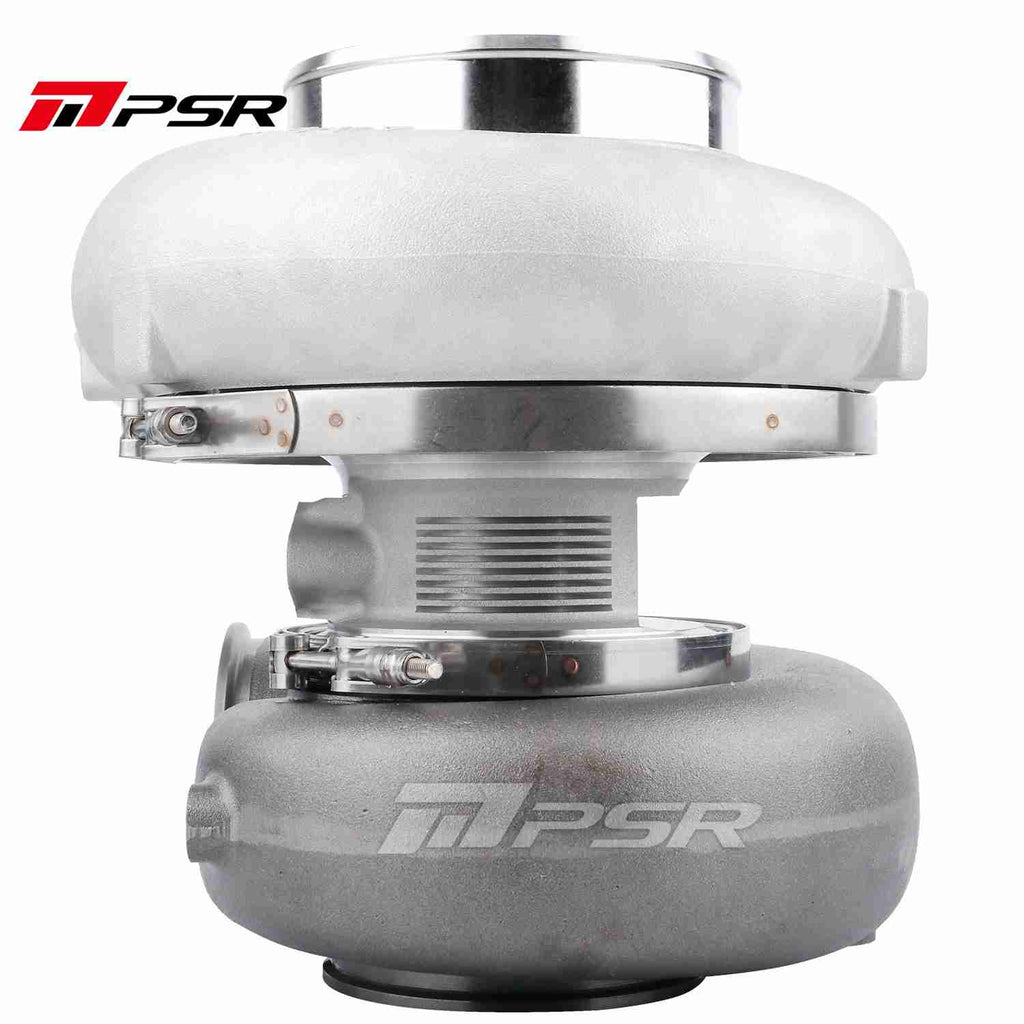

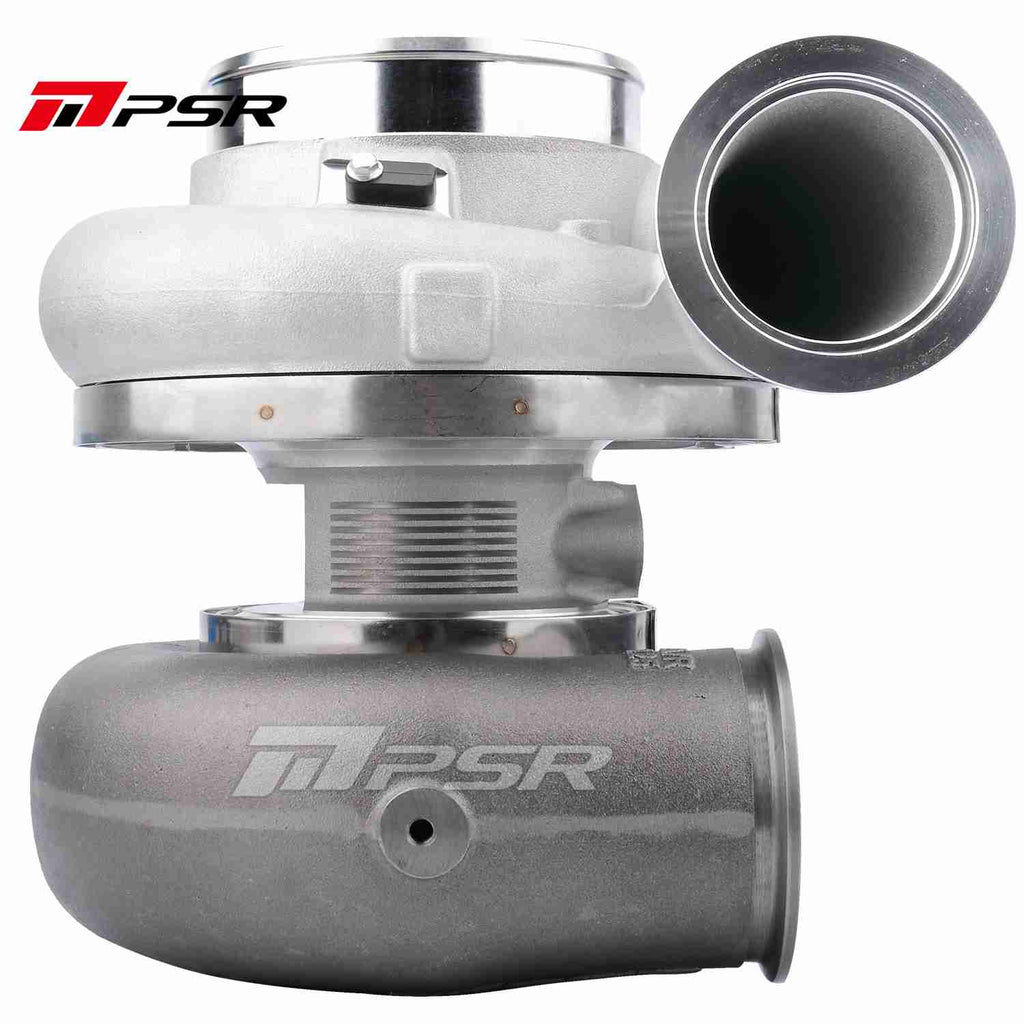

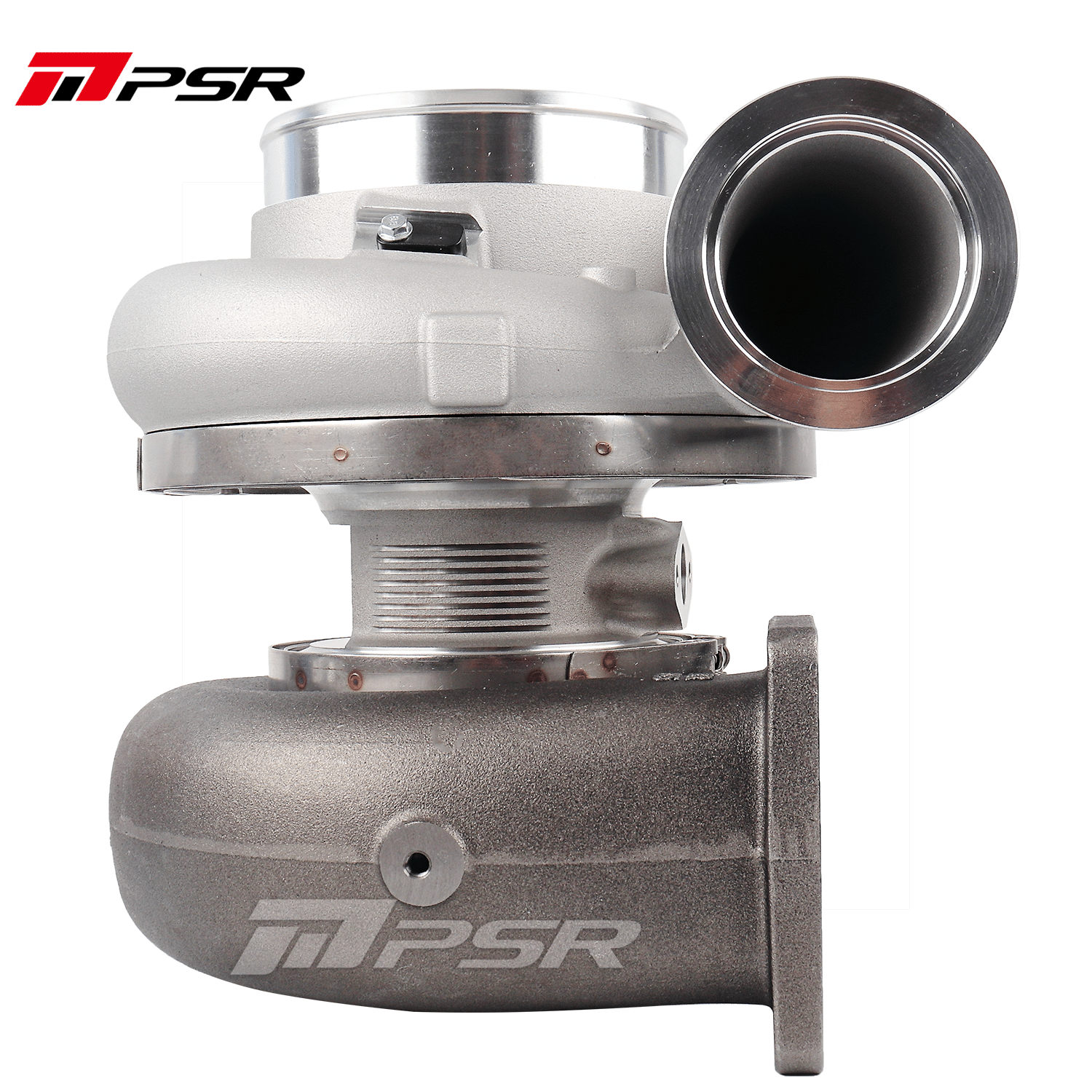

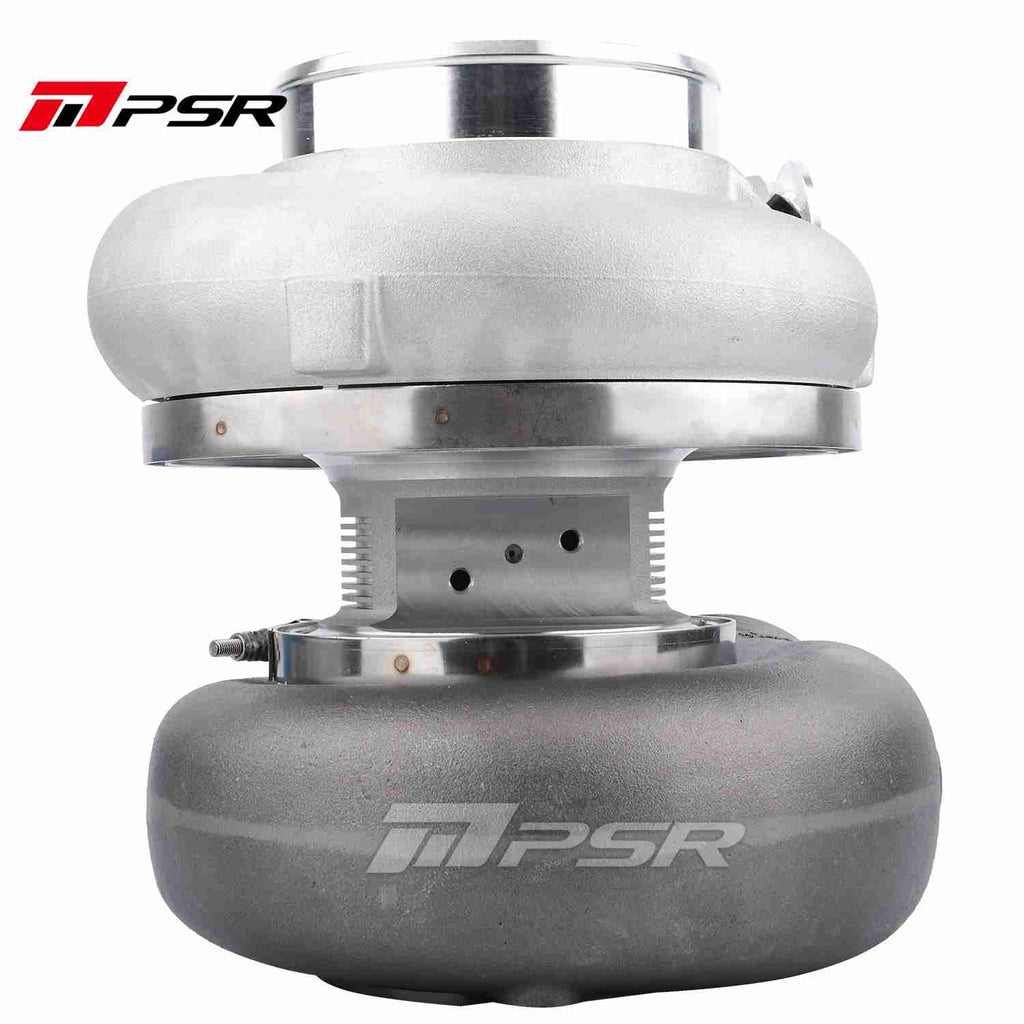

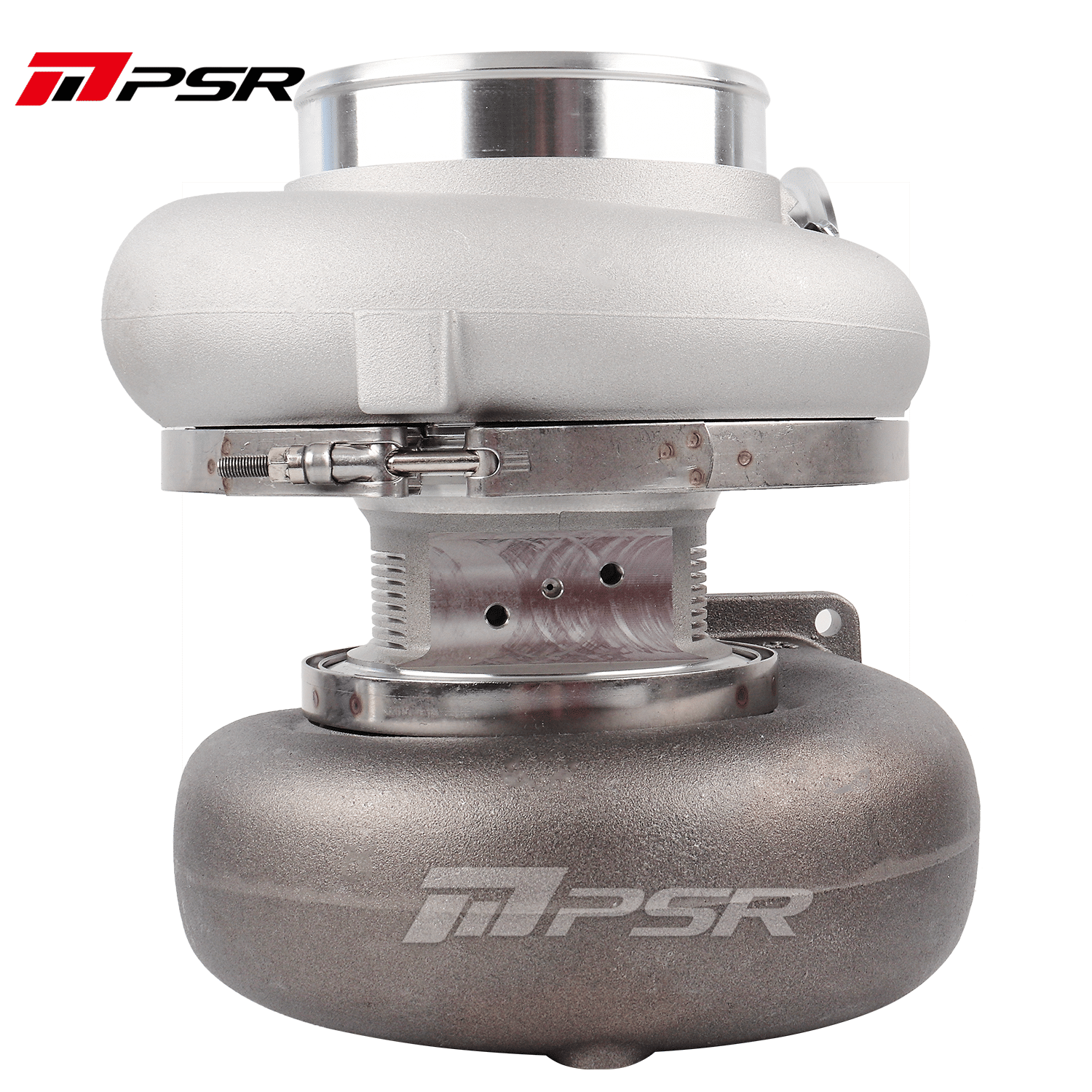

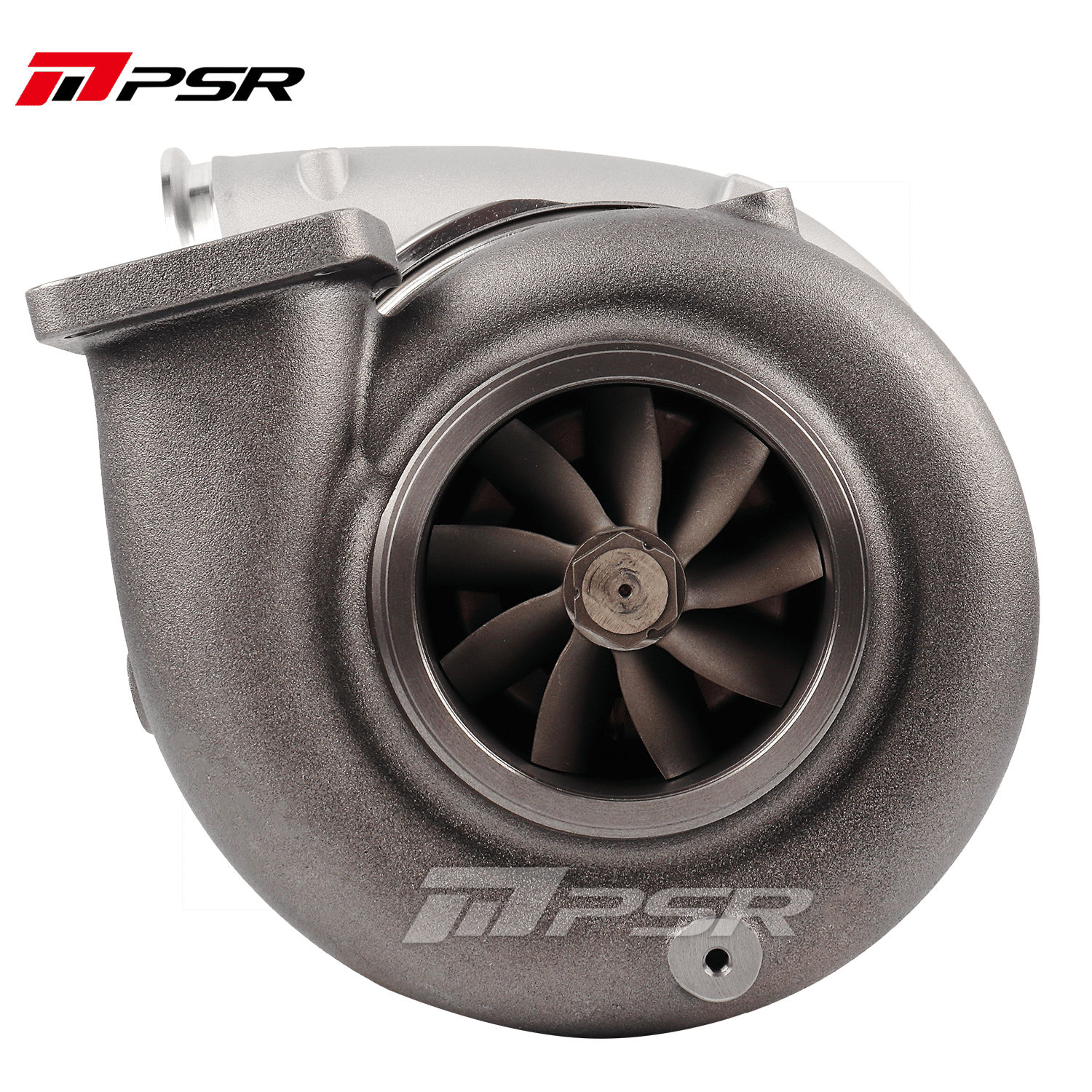

PSR - PRO106 HP Rating 3000
Standard / 1.09A/R Dual V-Band
$4,750.00
Skip to product information
PSR - PRO106 HP Rating 3000
$4,750.00
SKU: 102157007
- Dual ceramic ball bearing system provides optimal turbo response & better durability by reducing the shaft motion
- 13 Blade G-Aero billet compressor wheel 106mm inducer produces up to 3000 hp

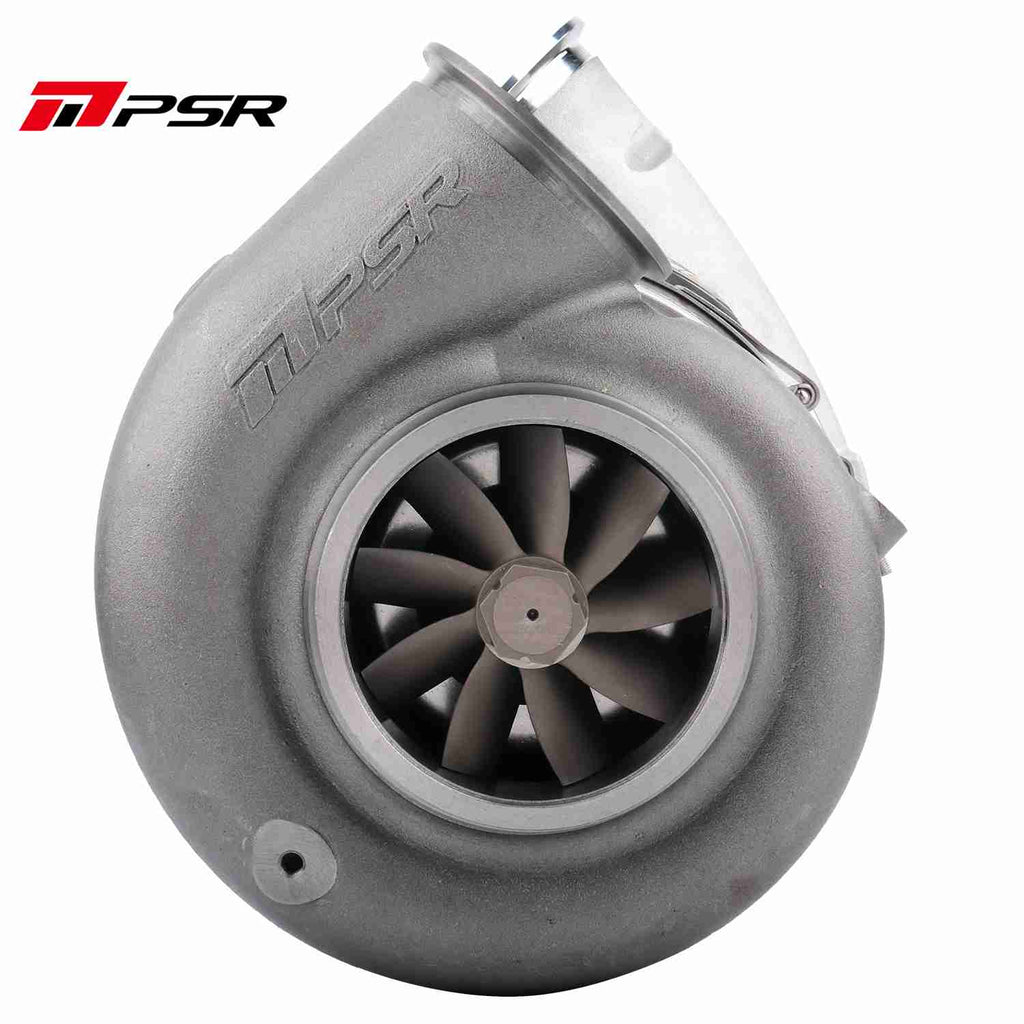

- 9 Blade G-Aero Inconel 713c turbine wheel with more turbine flow
- Fin cooled aluminum center housing, lighter weight
- Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
- Installation Hardware: 4-Inch flange kit for Comp. Outlet, 3.5-Inch flange kit for Turb. Inlet, 5-Inch flange kit for Turb. The outlet and oil Drain Fitting kits are included by default
- Oil Feed Fitting(-4AN, 1.65mm (0.065-Inch ) Orifice) included
Description
- Compressor Wheel: 106x144mm
- Turbine Wheel: 118x112mm
- Compressor Inlet: 6” Hose
- Compressor Outlet: 4” V-band
- Compressor Housing A/R: 0.96
- Turbine Inlet: 3.5” V-Band (DV Housings) or T6 Open
- Turbine Outlet: 5” V-Band
- Turbine Housing A/R: 1.09/1.25/1.41
- Oil Feed: See graph below(OIL INLET)
- Oil Drain: See graph below(OIL OUTLET)
