$3,485.00

Compressor Housing Options Standard T51R Mod W/O Compressor Housing

Turbine Housing Options 1.09A/R Dual V-Band 1.25A/R Dual V-Band 1.41A/R Dual V-Band 1.25A/R T6 open 1.41A/R T6 open W/O Turbine Housing

SKU: 102157009

Dual ceramic ball bearing system provides optimal turbo response &
better durability by reducing the shaft-motion
13 Blade G-Aero billet compressor wheel 88mm inducer produces up to 2000 hp

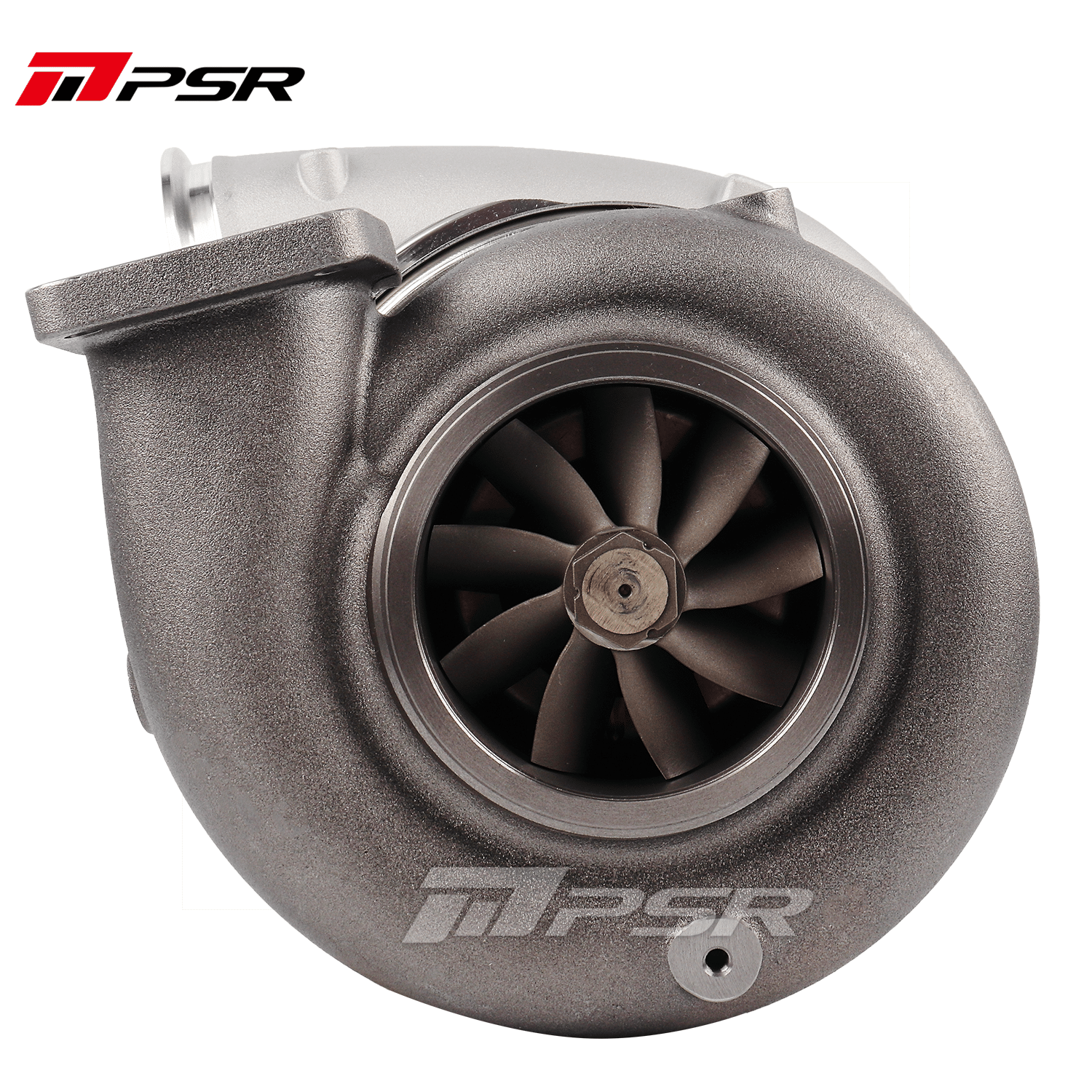

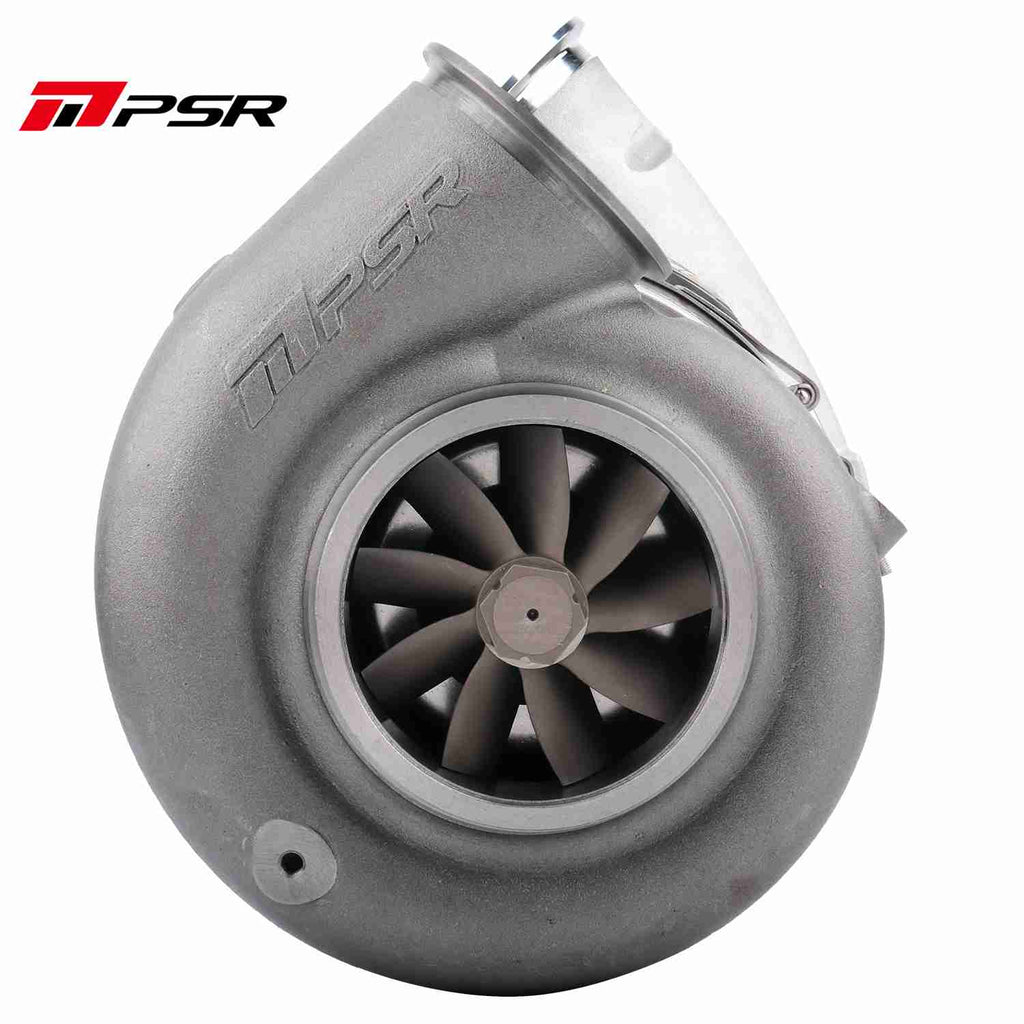

9 Blade G-Aero Inconel 713c turbine wheel with more turbine flow
Fin cooled aluminum center housing, lighter weight
Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
Installation Hardware: 4” flange kit for Comp. Outlet, T6 Gasket/3.5” flange kit for Turb. Inlet, 5” flange kit for Turb. Outlet and oil Drain Fitting kit are included by default
Oil Feed Fitting(-4AN ∅ 1.65mm (0.065″) Orifice) included

Description

Compressor Wheel: 88.3×133.5×141.8mm
Turbine Wheel: 118x112mm
Compressor Inlet: 6” Hose
Compressor Outlet: 4” V-band
Compressor Housing A/R: 0.88
Turbine Inlet: 3.5” V-Band (DV Housings) or T6 Open
Turbine Outlet: 5” V-Band
Turbine Housing A/R: 1.09/1.25/1.41
Oil Feed: See graph below(OIL INLET) (an oil restrictor with ~1mm orifice is highly recommended)
Oil Drain: See graph below(OIL OUTLET)

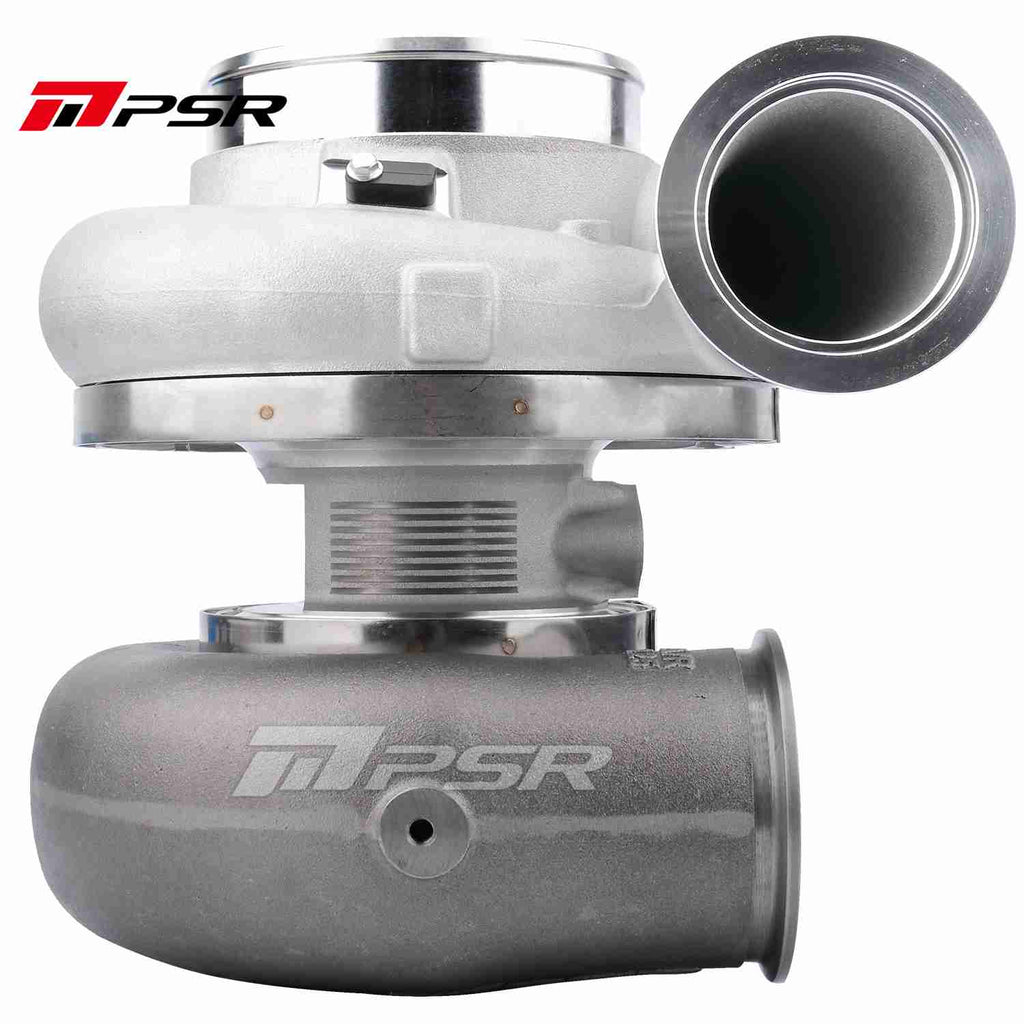

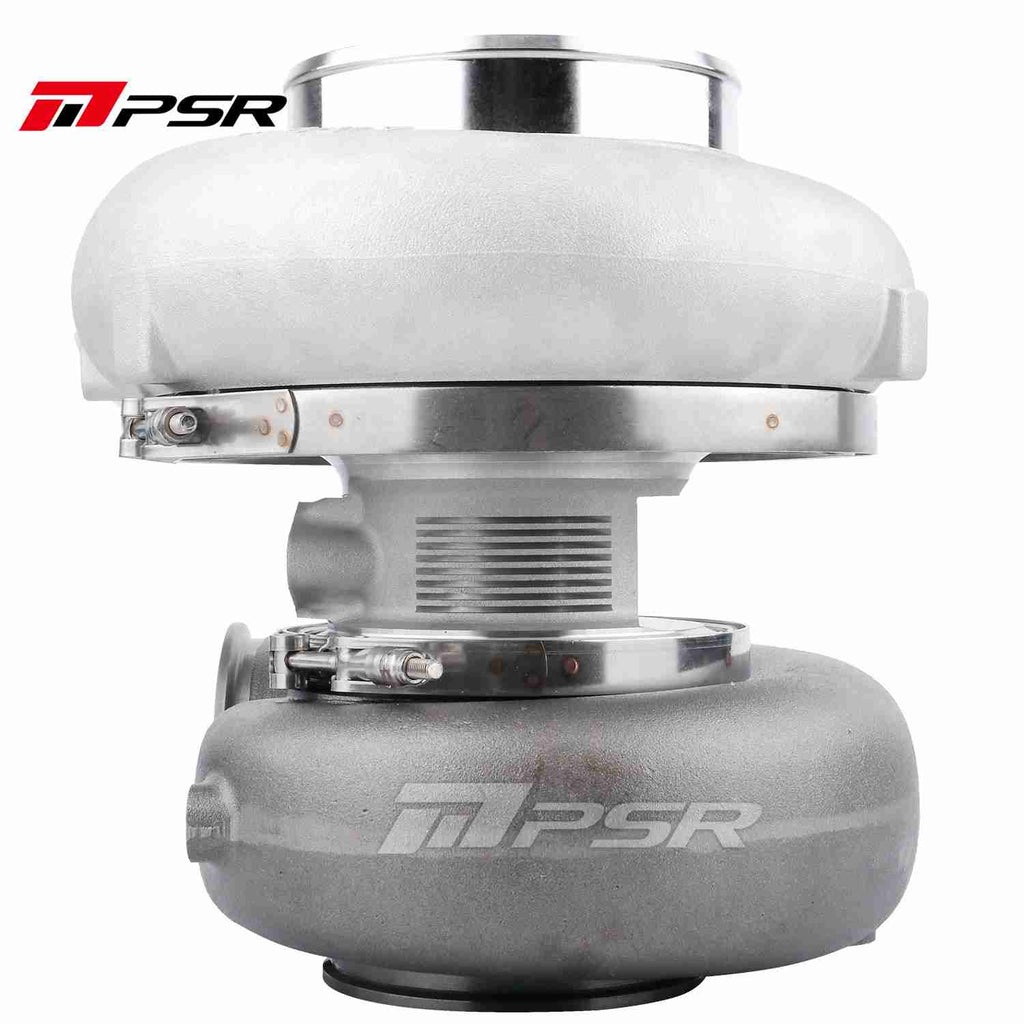

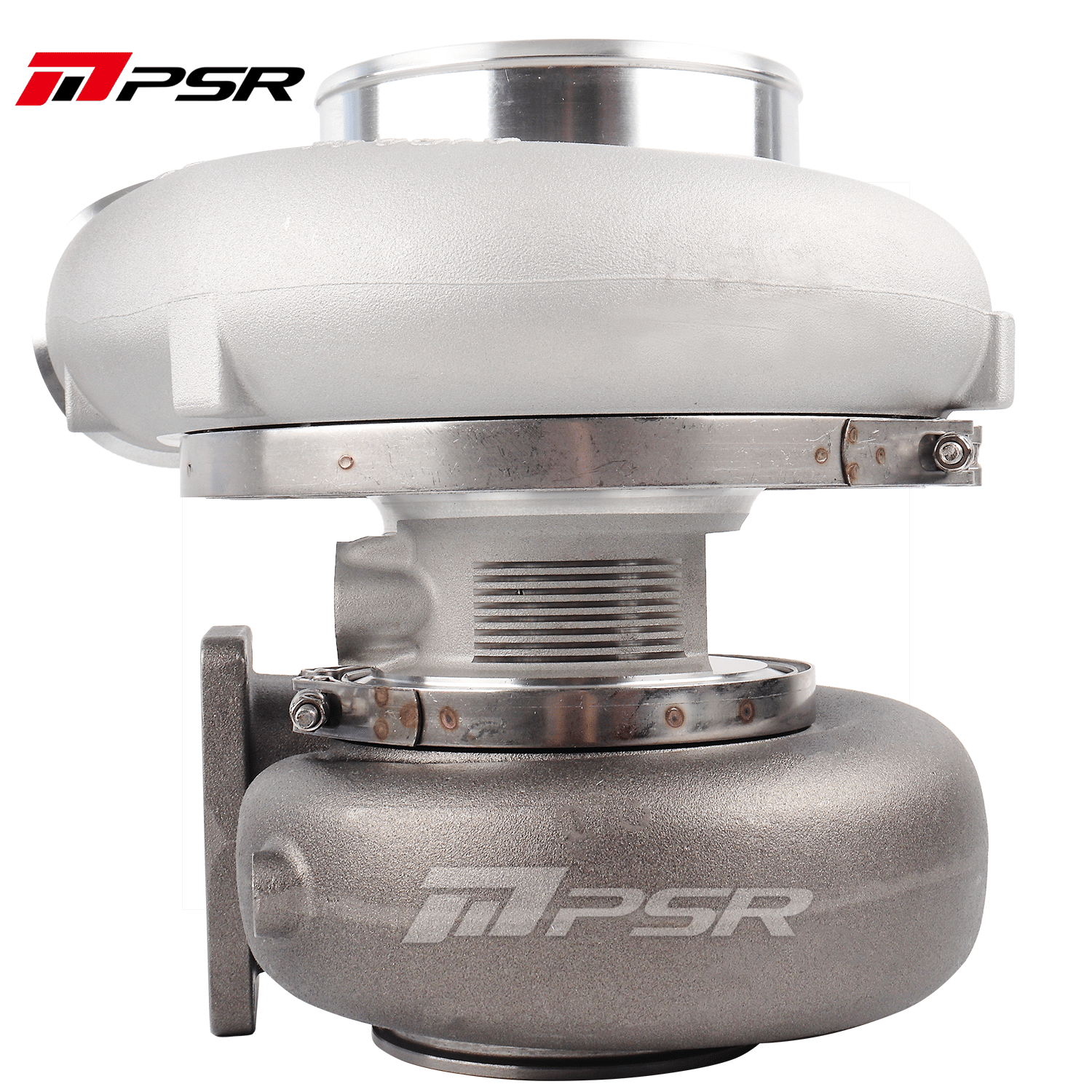

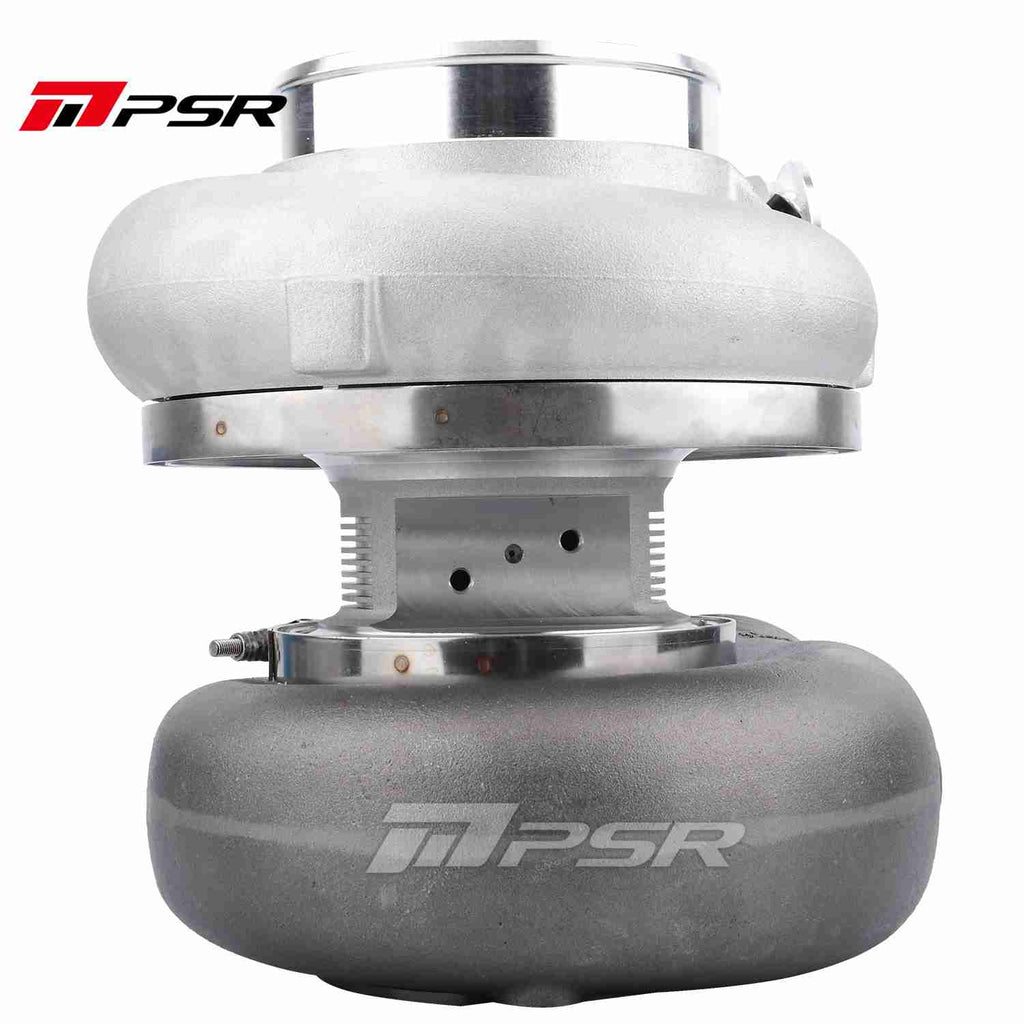

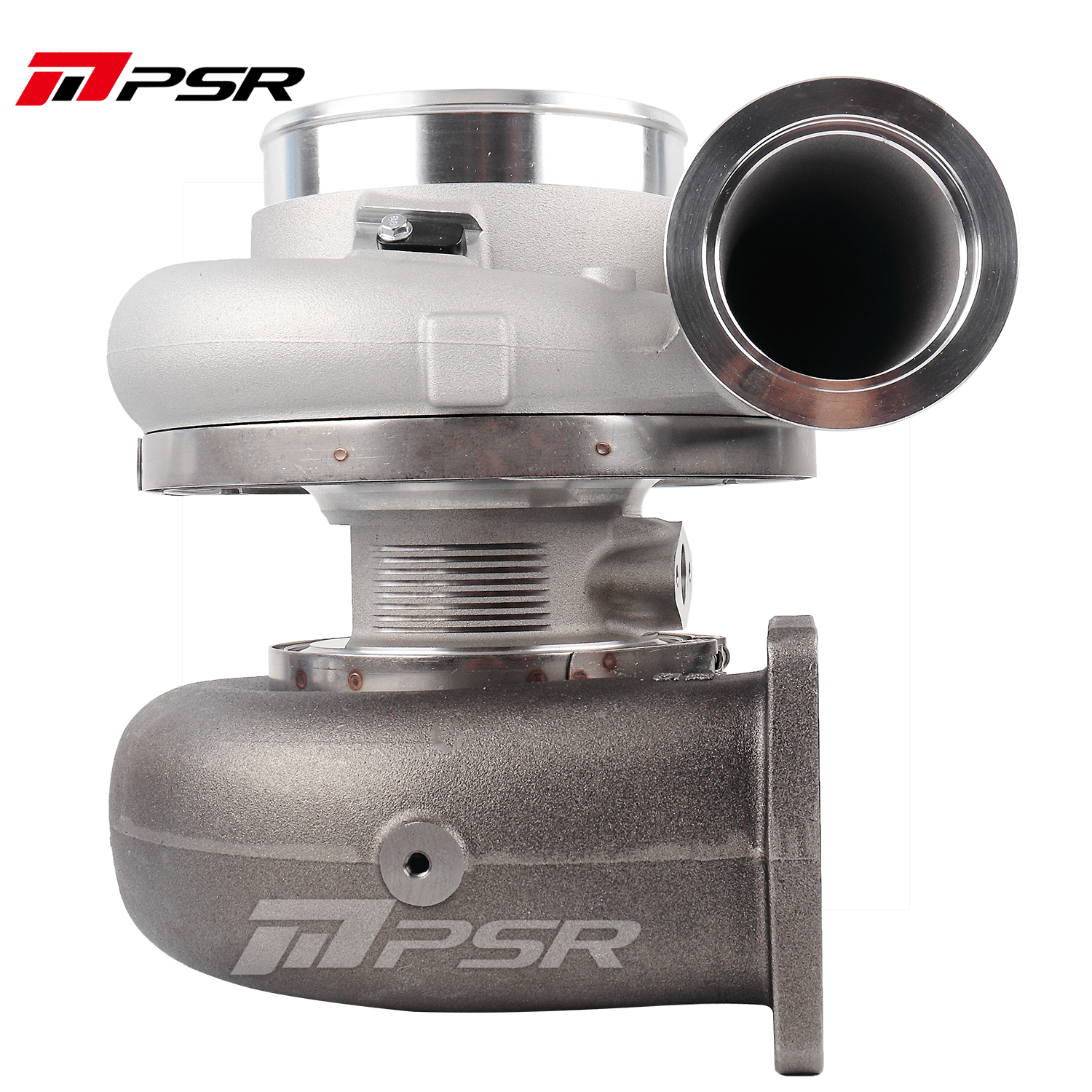

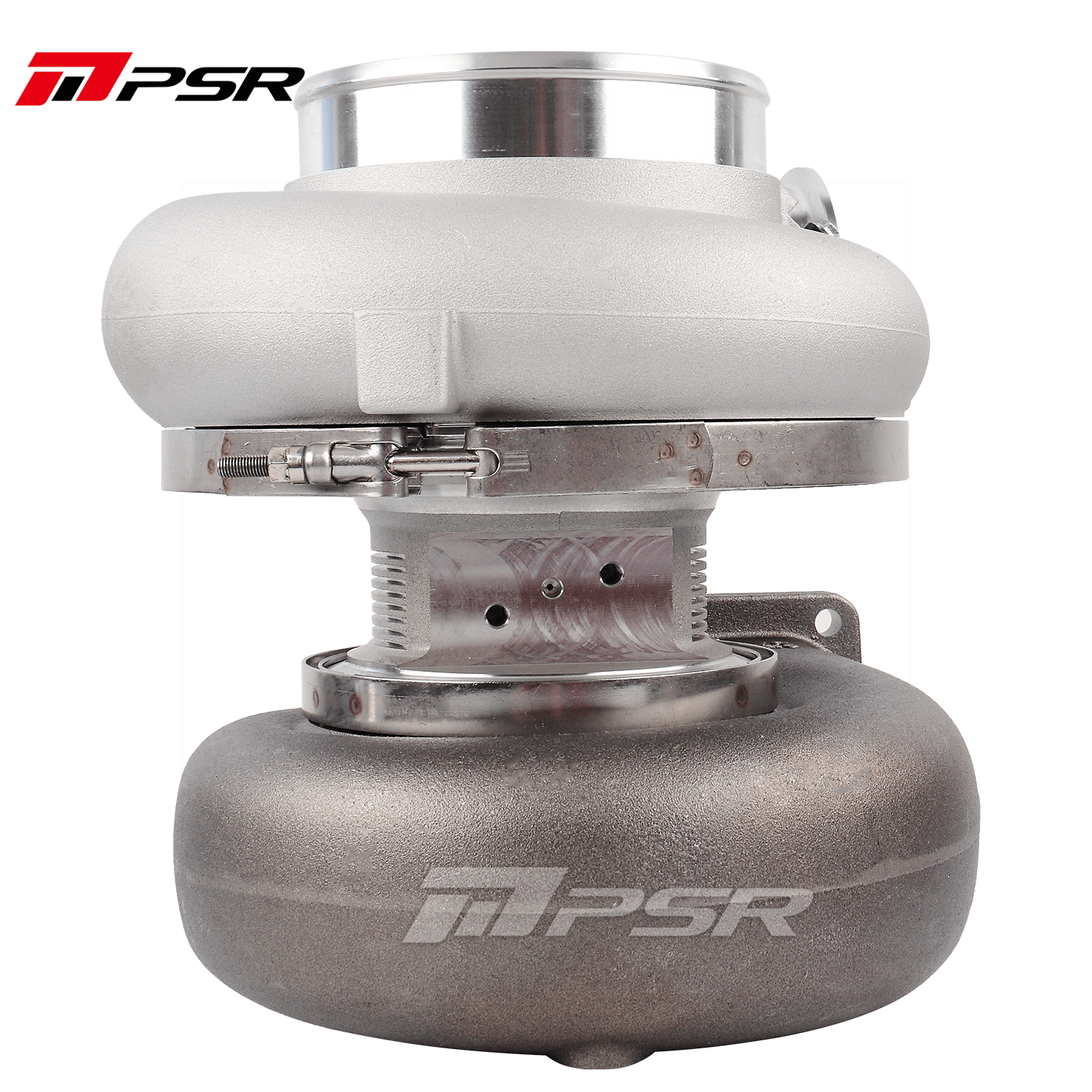

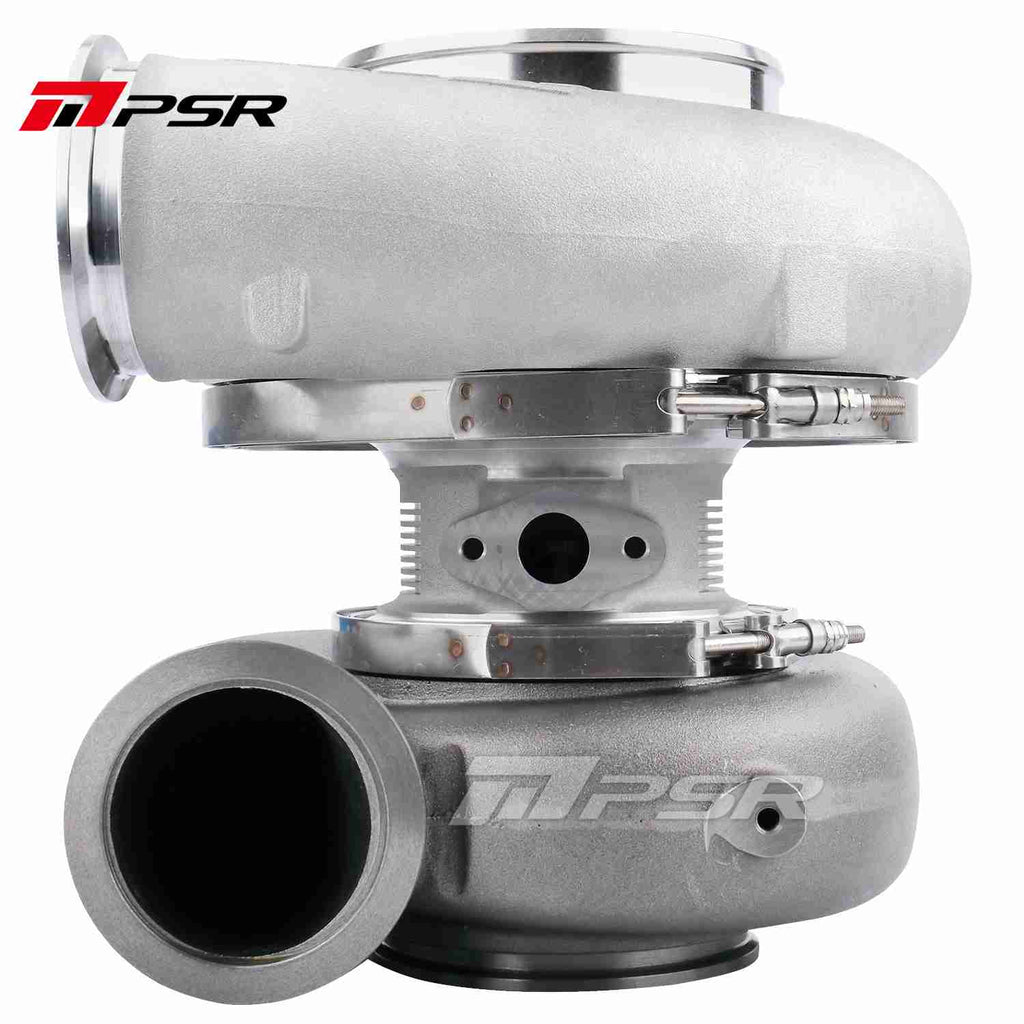

PSR - PRO88 HP Rating 2000
