Radium - FCST Mounting Accessories
Fuel Cell Gasket 6x10 24-Bolt
$58.00
Skip to product information
Radium - FCST Mounting Accessories
$58.00
SKU: 18-0015
These fuel cell mounting accessories can be used to help mount FCST-X, FCST, or any of the industry standard 6" x 10" 24-Bolt fuel cell drop-ins.

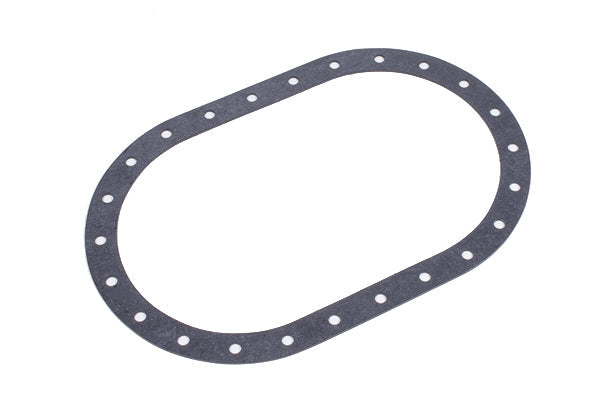

18-0015 Fuel Cell Gasket 6x10 24-Bolt
Radium Engineering gasket for industry standard 6x10 inch (24-bolt) fuel cells. Unlike others constructed from cork or paper, this seal is die cut from a premium quality variation of FKM. The Radium gasket is 1/16" thick and re-useable. Compatible with all Radium fuel cell surge tanks.

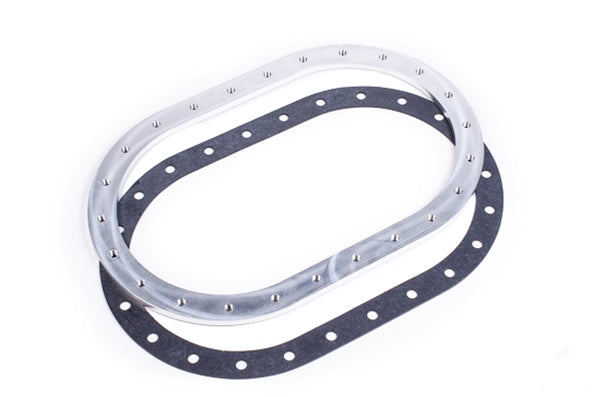

20-0278 Fuel Cell Weld Flange Raw Alum w/ Gasket
Fuel cell 6x10 inch, 24-bolt weld flange. CNC machined from 6061 billet aluminum and fly-cut to 0.24" thickness. Includes gasket. Ideal for welding to an aluminum tank. Welding must be performed by an experienced welder who can prevent warping of the flange. Holes are tapped for 1/4"-28 fasteners. Great for custom fuel cells. Compatible with all Radium fuel cell surge tanks.

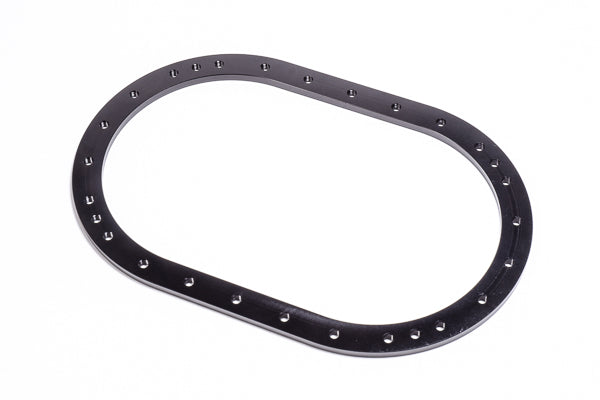

14-0584 Fuel Cell Nut Ring Black Anodized
This nut ring is manufactured from 6061 aluminum and is anodized to permit all fuel types and to prevent corrosion. All threaded holes are tapped for 1/4"-28 using the industry standard 6x10 pattern. It was designed to bolt into Radium RA-series fuel cells but can work with others. Gasket not included.
Notice: This product is designed and intended strictly for off-road closed-course motorsport competition and racing vehicles.
