Radium - Fuel Cell Refueling Kits for FCST-X
Standard Fill, Direct Mount (Without Dump Can)
$188.00
Skip to product information
Radium - Fuel Cell Refueling Kits for FCST-X
$188.00
SKU: 20-0841-20
These refueling kits are designed specifically for the Radium Engineering Fuel Cell Surge Tanks. The FCST-X's do not come standard with any refueling parts so these kits are available to simplify the process of choosing filling parts. Kits will include a filler solution and a vent kit.

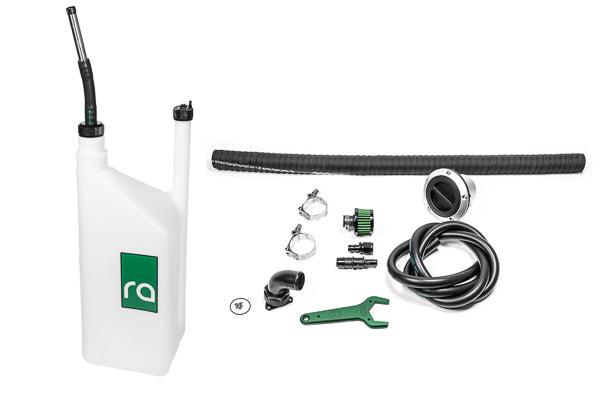

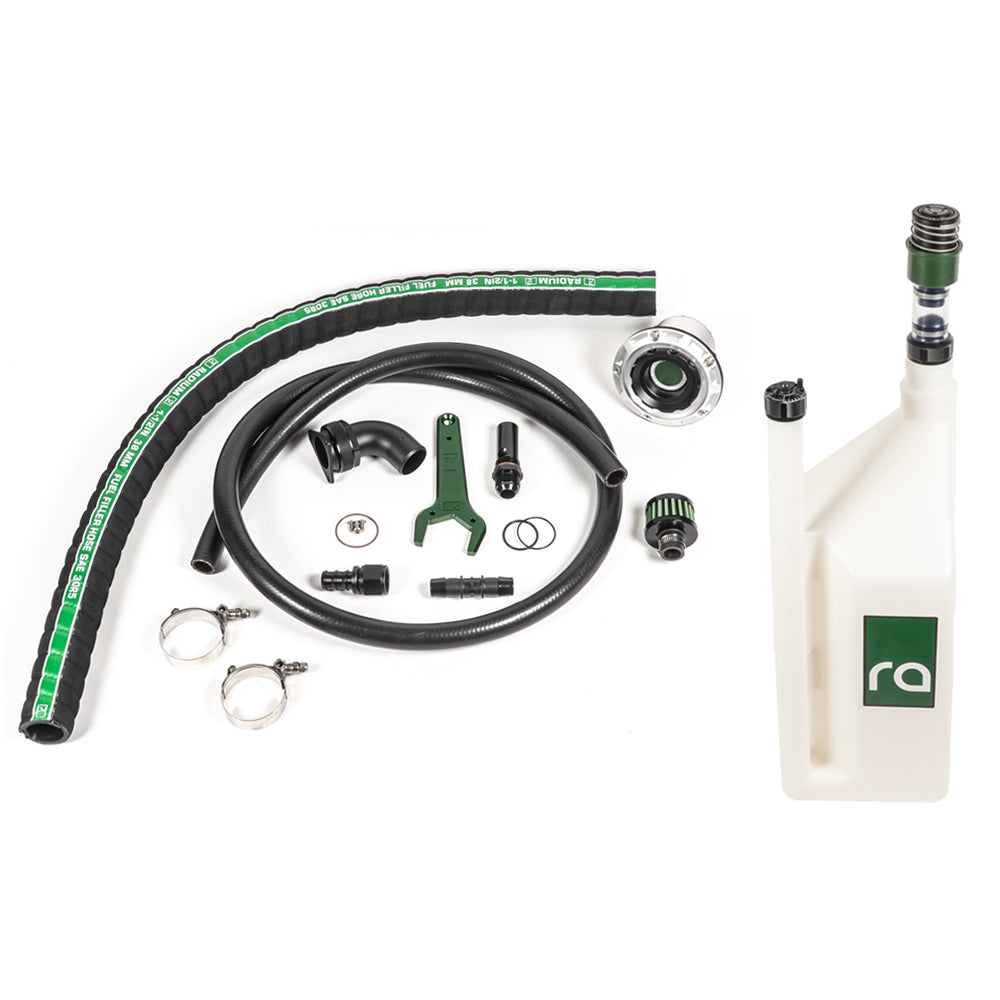

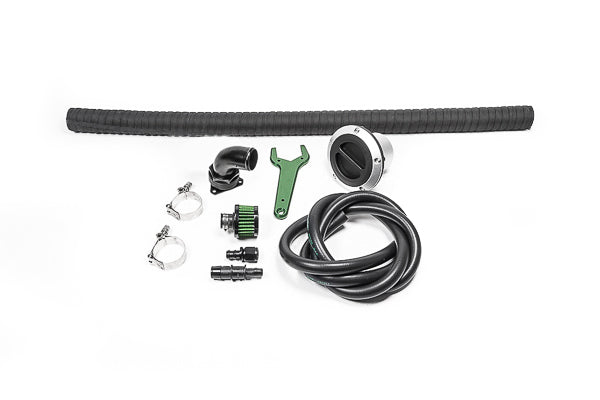

As described below, the Radium Engineering refueling kits come in a few different varieties. Photos show contents of each kit.
20-0841-20 FCST-X REFUELING KIT, DIRECT MOUNTED STANDARD FILLER
This option works for vehicles that require a standard filler mounted directly on the fuel cell. The included fill neck and cap mounts directly to the Radium FCST-X. The vent hose secures directly to the 8AN DSV (vent valve) that comes standard with all Radium FCST-X models. A proper vent kit secures directly to the 8AN DSV that comes standard with the Radium FCST-X.
20-0841-22 FCST-X REFUELING KIT, REMOTE MOUNTED STANDARD FILLER
This option works for vehicles that require a standard filler mounted remotely from the fuel cell. The included flanged filler typically mounts to a body panel. An 8AN vent hose is included as well. A 36" long (1.5" ID) fuel filler hose attaches to the provided Radium FCST-X mounted fill neck elbow. A proper vent kit secures directly to the 8AN DSV that comes standard with the Radium FCST
20-0841-00 FCST-X COMPLETE REFUELING KIT, DIRECT MOUNTED STANDARD FILLER
This option works for vehicles that require a standard filler mounted directly on the fuel cell. The included fill neck and cap mounts directly to the Radium FCST-X. A proper vent kit secures directly to the 8AN vent that comes standard with the Radium FCST-X. The provided dump can features a large vent for faster filling than typical fuel jugs.
20-0841-02 FCST-X FCST-X COMPLETE REFUELING KIT, REMOTE MOUNTED STANDARD FILLER
This option works for vehicles that require a standard filler mounted remotely from the fuel cell. The included flanged filler typically mounts to a body panel. A 1.5" fuel filler hose attaches to the provided Radium FCST-X mounted fill neck elbow. A proper vent kit secures directly to the 8AN vent that comes standard with the Radium FCST-X. The provided dump can features a large vent for faster filling than typical fuel jugs.
20-1841-03 FCST-X COMPLETE REFUELING KIT, REMOTE MOUNTED 1.5IN DRY BREAK FILLER
This option works for vehicles that require a quick-fill dry break mounted remotely from the fuel cell. The provided 5 gallon dump can features a dry break probe for quick fuel filling. The receiver typically mounts to a body panel and a1.5' fuel filler hose attaches to the provided Radium FCST-X mounted fill neck elbow. A 12AN vent line ensures proper air flow for fast filling.
Notice: This product is designed and intended strictly for off-road closed-course motorsport competition and racing vehicles.
