Radium - Fuel Cell Vent Kits
Fuel Cell Vent Kit (8AN)
$87.00
Skip to product information
Radium - Fuel Cell Vent Kits
$87.00
SKU: 20-0484-08

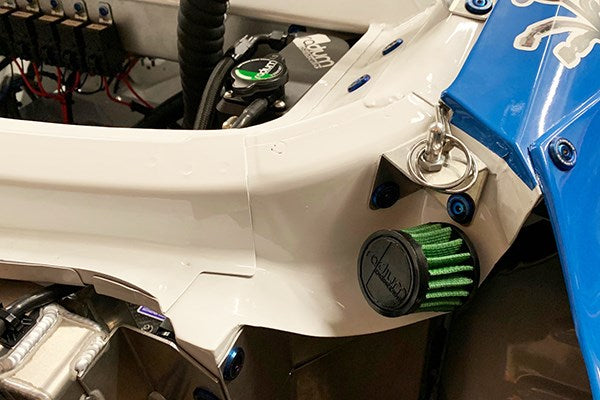

The vent permits air to escape as the fuel cell is filled and permits filtered air to enter when fuel is getting consumed. This allows the tank to breath to avoid pressurization during normal operation.
These also work very well along with our Fuel Vent Charcoal Canister kits.
20-0484-08 Fuel Cell Vent Kit, 8AN

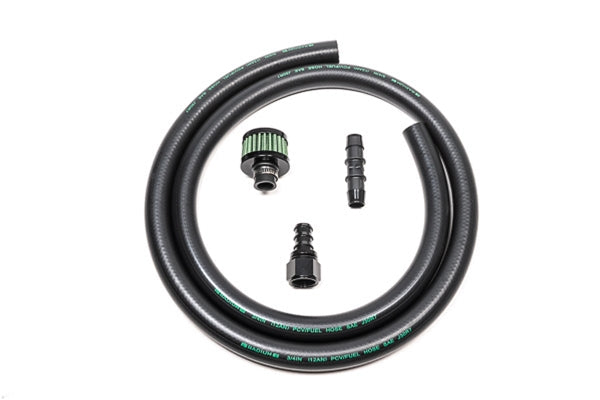

This kit is typically used for standard-fill systems with direct fill or remote fill necks. It includes an air filter, 6ft (1.8m) of 1/2" ID fuel vent hose, and adapter fittings. The kit requires an 8AN male vent fitting.
NOTE: This can be used with the standard vent fitting that is included with the Radium FCST.
20-0484-12 Fuel Cell Vent Kit, 12AN
This high flow kit is typically used for quick-fill systems that commonly use a dry break and dump can. It includes an air filter, 6ft (1.8m) of 3/4" ID fuel vent hose, and adapter fittings. The kit requires a 12AN male vent fitting.
NOTE: This can be used with Radium 20-0462 DSV, 12AN ORB to 12AN Male, Quick Fill.
20-0485 12AN Female Fitting to Air Filter
This is typically used with a 12AN ORB to 12AN Male , Radium DSV It includes an air filter and a 12AN female adapter fitting and requires a 12AN male vent fitting.
NOTE: Because the top of the fuel fill tube should not be higher than the location of this air filter, this is commonly used in conjunction with direct fue l cell fill caps only (not remote fillers).
20-0439 12AN ORB to 5-Bolt SAE Adapter
This adapter is commonly used with old FCST units (20-014X-XX) which had a small vent. It converts the fuel level flange to a large 12AN ORB vent.
NOTE: a fuel level sender cannot be used with this adapter in place.
Notice: This product is designed and intended strictly for off-road closed-course motorsport competition and racing vehicles.
