Radium - Fuel Pump Hanger, 90-05 Acura NSX

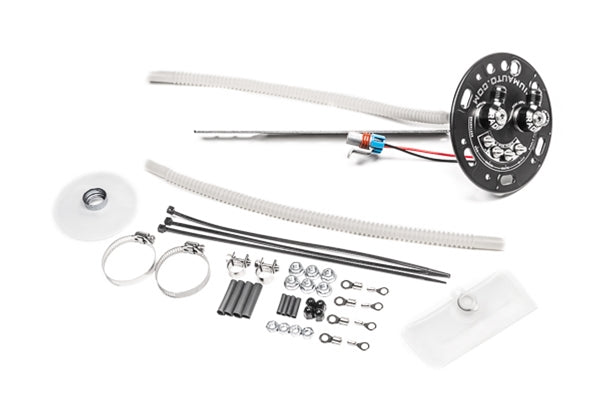

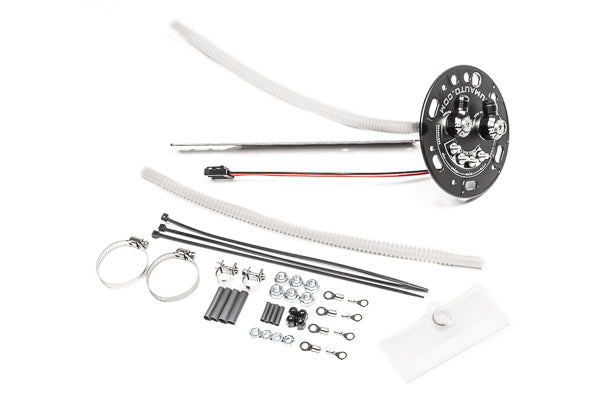

This Radium Engineering fuel hanger replaces the stock fuel pump assembly in the 1990-2005 Acura NSX. No cutting or modifying of the vehicle's sheet metal or fuel tank is required for installation. The fuel pump is positioned in the factory collector bowl for fuel starvation protection.

The fuel pump outlet is tapped for 8AN ORB (3/4"-16) female threads on the top plate. The preinstalled 6AN male fitting permits an aftermarket feed line and/or connects to the factory plumbing. The return inlet is tapped for 6AN ORB (9/16"-18) female threads on the top plate. All fittings are machined low enough to clear the factory sheet metal.

ELECTRICAL: The custom designed anti-rotation stainless steel electrical studs easily handle high current demand. Non-conductive anodized aluminum acorn nuts prevent accidental short circuiting, and in-tank wiring is insulated with chemically resistant ETFE.
