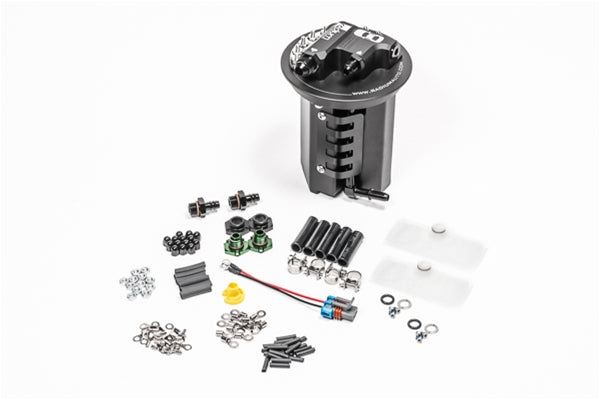

Radium - Fuel Pump Hanger for Scion FR-S / Subaru BRZ / Toyota GT86 & GR86

The Radium Engineering In-Tank Fuel Pump Hanger for Scion FR-S, Subaru BRZ, Toyota GT86, and 2022+ GR86 has been completely re-engineered for superior fuel scavenging and drop-in installation. It replaces the factory fuel module, allowing 1 or 2 high-performance fuel pumps to run without fuel surge on track.

Key Performance Features:

• Integrated Anti-Surge Collector Box: CNC machined 1-piece aluminum collector incorporates a 355 LPH 1-way fill valve that traps fuel around pump pickups.
• Re-Engineered Venturi Jet Siphon: Eliminates factory siphon restriction to safely run high-flow pumps without increasing idle fuel pressure.
• Dual Pump Ready: Pre-wired with dual high-current electrical feed-throughs for single or staged pump operation.
• Factory Level Float Retained: Keeps factory instrument cluster fuel gauge accurate.
• High Flow AN Ports: Features 8AN ORB pump outlet and 6AN ORB return.

Engine & Vehicle Compatibility:

• 2013–2016 Scion FR-S (ZN6) - FA20
• 2013–2020 Subaru BRZ (ZC6) - FA20
• 2017–2020 Toyota 86 / GT86 (ZN6) - FA20
• 2022+ Toyota GR86 (ZN8) - FA24D
• 2022+ Subaru BRZ (ZD8) - FA24D

Notice: Inlet and outlet ports are female ORB; male AN adapter fittings and hose ends are sold separately. Fuel pumps and plumbing kits sold separately.
