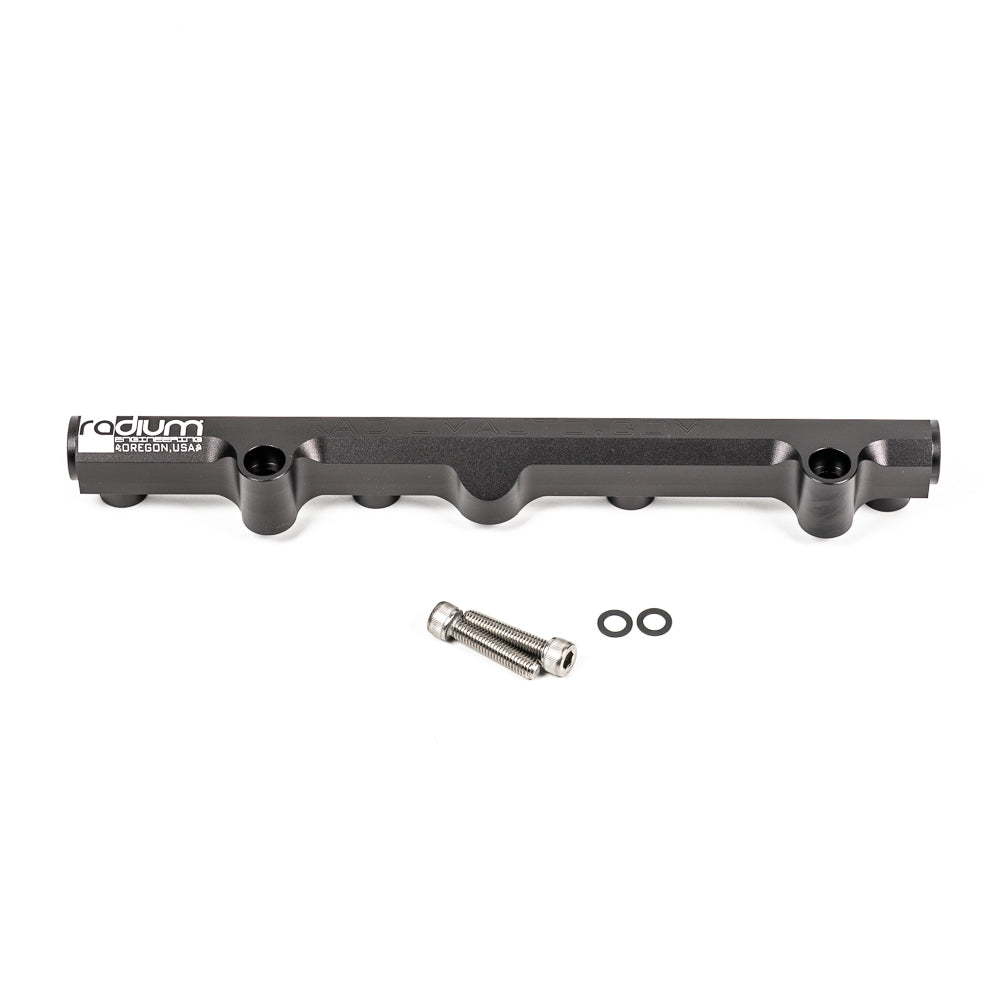

Radium - Fuel Rail for Honda K-Series (K20/K24)

Engineered specifically for Honda/Acura K-Series (K20/K24) engines. Compatible with all OEM and aftermarket intake manifolds that accept factory fuel rails.

*Note: Not compatible with direct-injected K20C1 engines.

Key Features:

• High-Flow Internal Bore: Large 0.69" (17.5mm) internal bore supports high-horsepower fuel demand without pressure drop.
• Premium Construction: CNC-machined from extruded 6063 aluminum, media-blasted, black-anodized, and laser-etched for maximum corrosion resistance and durability.
• OEM & Aftermarket Injector Fitment: 14mm ID injector bores accept factory OEM and aftermarket top-feed fuel injectors while retaining factory safety injector clips.
• Versatile 8AN ORB Ports: Threaded for -8AN ORB fittings on both ends and center port, allowing custom plumbing for deadhead or return fuel systems.
• Fuel Compatibility: Fully compatible with all fuel types including pump gas, race fuels, E85, and methanol.

Includes:

• Billet aluminum black-anodized fuel rail
• Stainless steel mounting hardware
• Thermal insulating mounting spacers

Configuration Options:

• Fuel Rail Only: Ideal for custom fuel systems utilizing aftermarket -AN fuel lines and fittings (Part # 20-0230-02).
• With OEM Plumbing Kit: Includes an extended SAE quick-connect adapter to clear factory coolant lines and two 8AN ORB plugs to seamlessly connect to the stock hardline (Part # 20-0230-02 + 20-0230-PK).
