Radium - Hose/Tube Separator Clamps
Hose Separator Clamp 5-Way
$43.00
Skip to product information
Radium - Hose/Tube Separator Clamps
$43.00
SKU: 20-0231

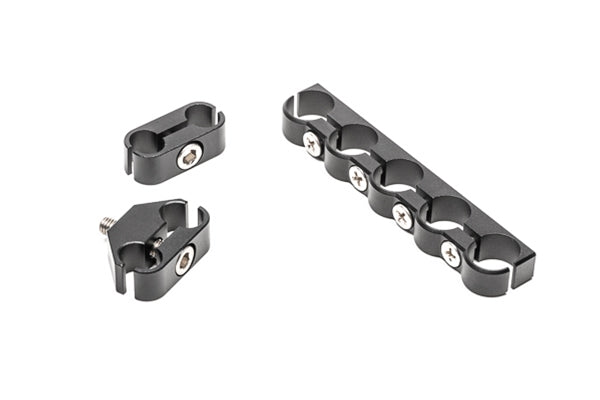

Billet aluminum clamps used for retaining hard lines, soft lines, hose, tubing, etc.
20-0231 HOSE SEPARATOR CLAMP, 5-WAY
Anodized black billet aluminum clamp used for securing hose, tubing, wire harnesses, etc. Includes all stainless steel hardware (4 bolts and 2 sheet metal screws). Each of the 5 inner diameters (ID) are 9/16' (0.563inch or 14.3mm).
20-0417 HOSE SEPARATOR CLAMP, 2-WAY
Anodized black billet aluminum clamp used for securing hard tubing, wire harnesses, etc. Includes a M6x1mm stainless steel bolt. Both inner diameters (ID) are 0.39inch (or 10mm).
NOTE: The bottom clamp has a through hole (not threaded). It requires a M6x1mm threaded boss for securing the provided bolt as shown below.
20-0817 HOSE SEPARATOR CLAMP, 2-WAY, THREADED
Anodized black billet aluminum clamp used for securing hard tubing, wire harnesses, etc. Includes a M6x1mm stainless steel bolt. Both inner diameters (ID) are 0.39inch (or 10mm).
NOTE: The bottom clamp is thread tapped. The provided bolt screws into the bottom clamp. As shown below, a threaded boss is not required
Notice: This product is designed and intended strictly for off-road closed-course motorsport competition and racing vehicles.
