Radium - Port Injection Kit, Audi R8, Lamborghini Gallardo LP
$1,450.00
SKU: 20-0865
The Radium Engineering Port Injection Kit (PIK) installs between the intake manifold and the lower runners on the cylinder heads. It permits the use of port injectors for the additional fuel required for highly-modified 5.2L V10 engines. This does NOT replace the OEM direct injection system.

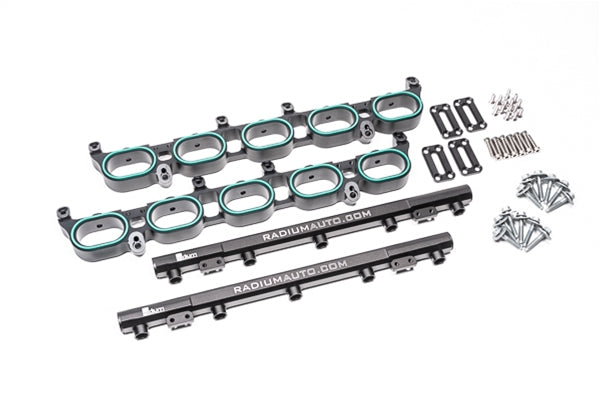

20-0865 Port Injection Kit R8 Gallardo LP
The PIK adapter plates can also be used as a simple intake manifold spacer without using the fuel rails. All that is required are 2AN ORB Plugs.
NOTES
- Compatible with all fuel types including popular alcohol mixtures such as E85
- Because the PIK will space up the intake manifold, a minor throttle body coupler adjustment may be required
- Fuel injectors, port fittings, fuel hose, wiring, injector controller, charge pipe, etc. are NOT included in 20-0865
- See the 20-0967-03 and 20-0967-05 (below) for plumbing that provides the necessary adapter fittings, fuel filter, regulator, pressure gauge, and hose
- For a high horsepower port injection check out the Radium Engineering 20-0860 fuel hanger surge tank

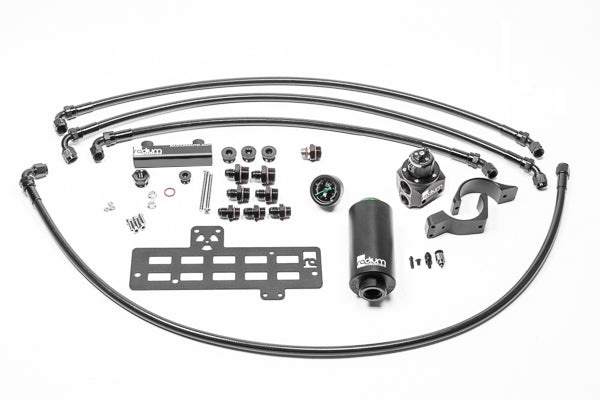

20-0967-03 and 20-0967-05 PIK PLUMBING KIT, GALLARDO LP
This kit permits an independant port injection fuel system. PTFE hoses, -AN adapter fittings, 1:1 pressure regulator, pressure gauge, and a fuel filter (stainless -03 or microglass -05) are all provided.
These components mount to the LH side of the engine using OEM threaded bosses on the frame rail. No drilling or permanent modifications are required. The Radium Engineering fuel hanger surge tank is recommended to feed this system.
Notice: This product is designed and intended strictly for off-road closed-course motorsport competition and racing vehicles.
