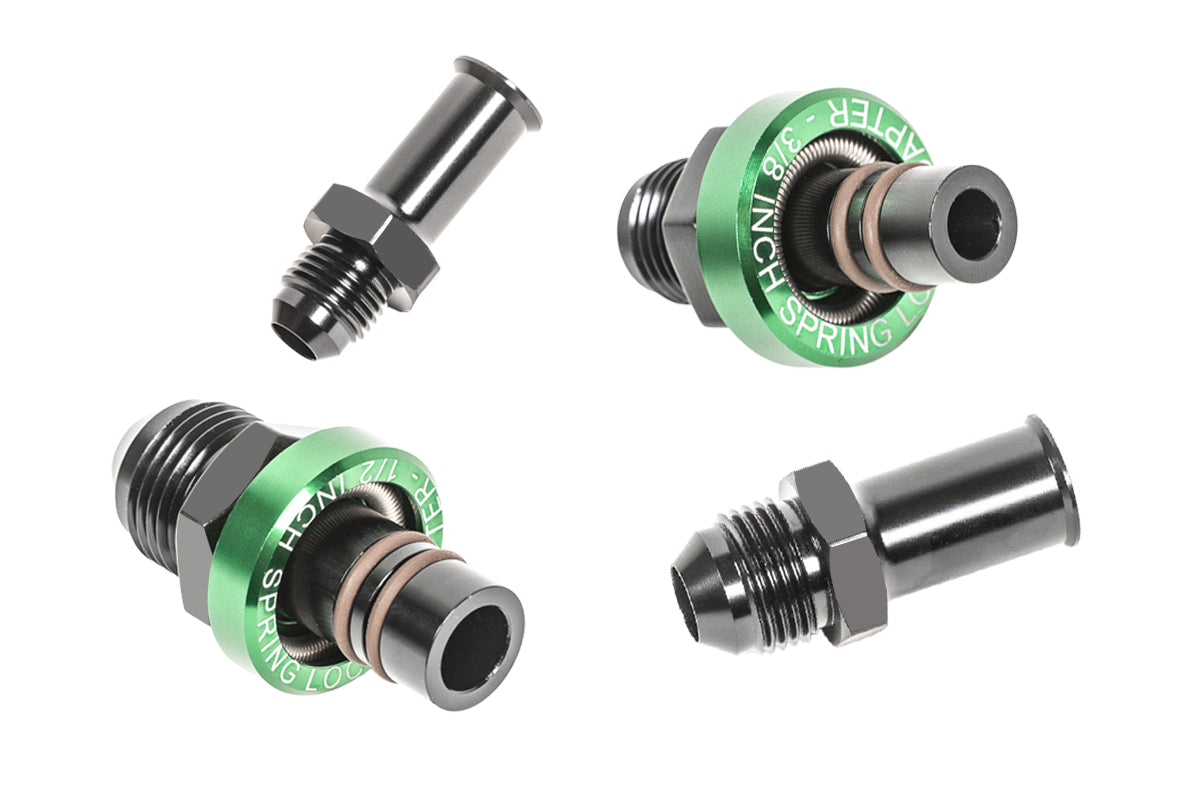

Radium - Spring Lock Adapter Fittings

These fittings are machined from 6061 aluminum and anodized for corrosion resistance. The integrated O-rings are FKM making the fittings compatible with gasoline and alcohol fuels, such as E85.

For separating, a Spring-Lock disconnect tool is required. Slide the tool along the female fitting and push it into the male fitting. While holding the inserted tool in place, an internal spring releases the lock and the fittings can be disengaged.

When making the connection, first be sure the O-rings on the male fitting are well lubricated. Simply insert the male fitting into the female fitting until an audible "click" is heard. To confirm they have properly locked together, apply tension to the connection by giving it a tug.

14-0766 6AN Male to 3/8in Spring Lock Female

Converts a 3/8" male spring lock line to 6AN male

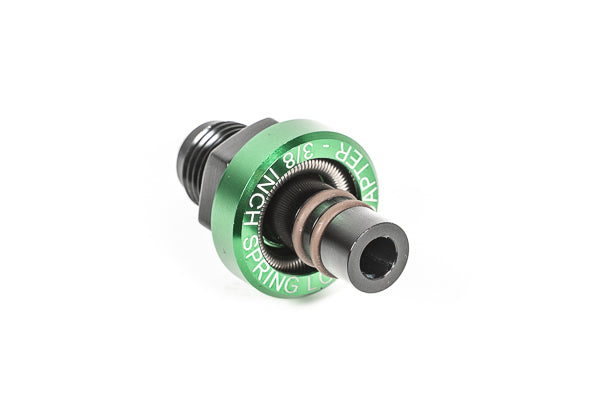

20-1766 6AN Male to 3/8in Spring Lock Male

Converts a 3/8" female spring lock line to 6AN male

14-0767 8AN Male to 1/2in Spring Lock Female

Converts a 1/2" male spring lock line to 8AN male

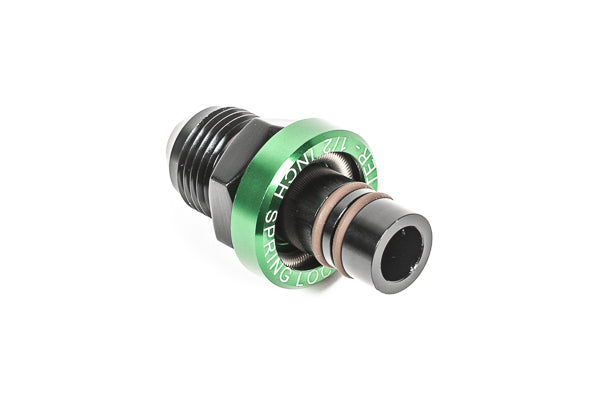

20-1767 8AN Male to 1/2in Spring Lock Male

Converts a 1/2" female spring lock line to 8AN male
