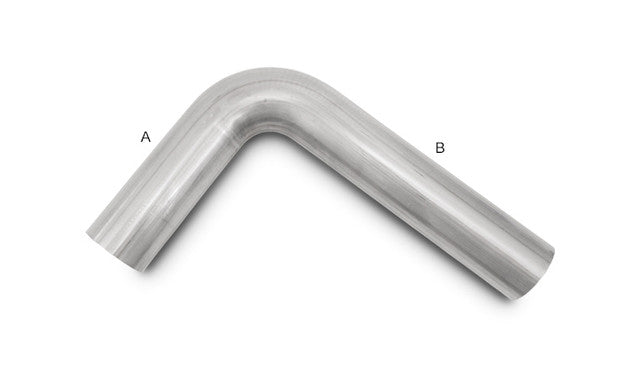

Vibrant - 304 Stainless Steel 90° Mandrel Bends

Vibrant continues to expand upon our 304 Stainless Steel Mandrel Bend program. In addition to our popular U-J Bends, we also offer a full assortment of bends from 15 deg to 180 deg. Available in a selection of sizes ranging from 1.00" to 5".

1.000" to 2.750" OD:

Leg Length A From Tangent: 4.000"
Leg Length B From Tangent: 12.000"

________________________________________

3.000" OD 3.000' CR:

Leg Length A From Tangent: 7.000"
Leg Length B From Tangent: 12.000"

3.000" OD 5.000' CR:

Leg Length A From Tangent: 6.000"
Leg Length B From Tangent: 12.000"

3.500" OD 3.500' CR:

Leg Length A From Tangent: 6.000"
Leg Length B From Tangent: 6.000"

3.500" OD 5.500' CR:

Leg Length A From Tangent: 8.000"
Leg Length B From Tangent: 8.000"

________________________________________

4.000" OD:

Leg Length A From Tangent: 6.000"
Leg Length B From Tangent: 6.000"

5.000" OD:

Leg Length A From Tangent: 7.500"
Leg Length B From Tangent: 10.000"
