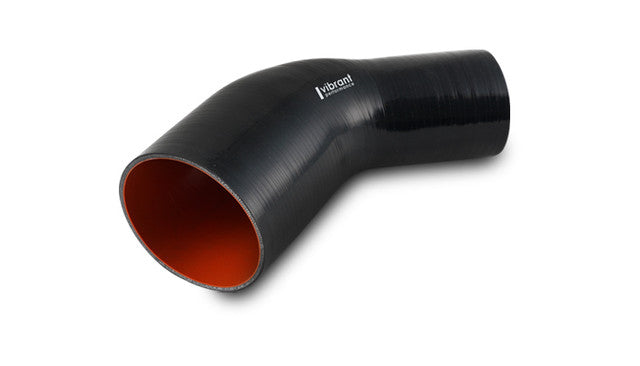

Vibrant - 45° Transition Elbows

Leg Length From Tangent: 4.000"
Wall Thickness: 0.200"

Vibrant Performance Aramid Reinforced Silicone 45° Transition Elbows feature High Temperature Resistant Aramid Reinforcement Fabric between each layer of silicone which allows for an impressive Operating Temperature Range of -75° F to 392° F (-60° C to 200° C). These elbows are intended for use in applications where pressurized tubing and connection points require a tight radius bend and size transition to accommodate the installation of piping in limited space. Not suitable for use with Oil/Fuel.

1.750" x 2.000":

Centerline Radius: 2.000"
Maximum Operating Pressure: 67 psi

2.000" x 2.250":

Centerline Radius: 2.250"
Maximum Operating Pressure: 57 psi

2.000" x 2.500":

Centerline Radius: 2.500"
Maximum Operating Pressure: 50 psi

2.500" x 3.000":

Centerline Radius: 3.000"
Maximum Operating Pressure: 35 psi

2.500" x 3.500":

Centerline Radius: 3.500"
Maximum Operating Pressure: 25 psi

2.750" x 3.000":

Centerline Radius: 3.000"
Maximum Operating Pressure: 35 psi

3.000" x 3.250":

Centerline Radius: 3.250"
Maximum Operating Pressure: 28 psi

3.000" x 3.500":

Centerline Radius: 3.500"
Maximum Operating Pressure: 25 psi

3.000" x 4.000":

Centerline Radius: 4.000"
Maximum Operating Pressure: 18 psi

3.250" x 3.500":

Centerline Radius: 3.500"
Maximum Operating Pressure: 25 psi

3.500" x 4.000":

Centerline Radius: 4.000"
Maximum Operating Pressure: 18 psi
