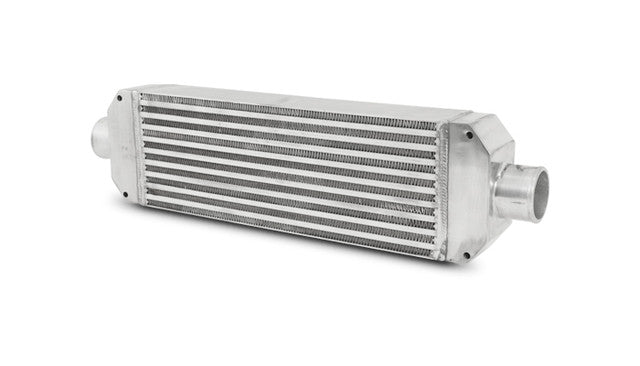

Vibrant - Air to Air Intercooler

Vibrant Performance Intercoolers feature Bar and Plate construction and a unique louvered fin design on the ambient path that maximizes the core’s available surface area, and an offset fin design on the charge path allows for minimal pressure loss. Our Cast Aluminum End Tanks are precision TIG-welded to the core and pressure tested for leak-free performance.

Small:

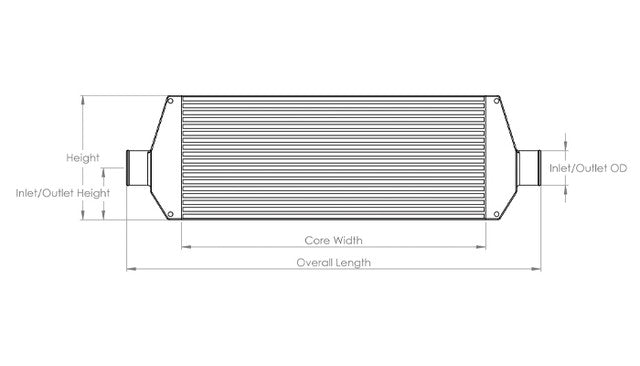

Core Width: 18" (Overall Width with End Tanks is 26")
Core Height: 6.5"
Core Thickness: 3.25"
Inlet Diameter: 2.5"
Outlet Diameter: 2.5"
Inlet/Outlet Neck Location: Center
Approx. HP Rating: 350 HP

Medium:

Core Width: 22" (Overall Width with End Tanks: 30")
Core Height: 9.25"
Core Thickness: 3.25"
Inlet Diameter: 2.50"
Outlet Diameter: 2.50"
Inlet/Outlet Neck Location: Offset
Approx. HP Rating: 550 HP

Large:

Core Width: 23.625" (Overall Width with End Tanks: 33")
Core Height: 12"
Core Thickness: 3.50"
Inlet Diameter: 3.00"
Outlet Diameter: 3.00"
Inlet/Outlet Neck Location: Offset
Approx. HP Rating: 875 HP
